Security

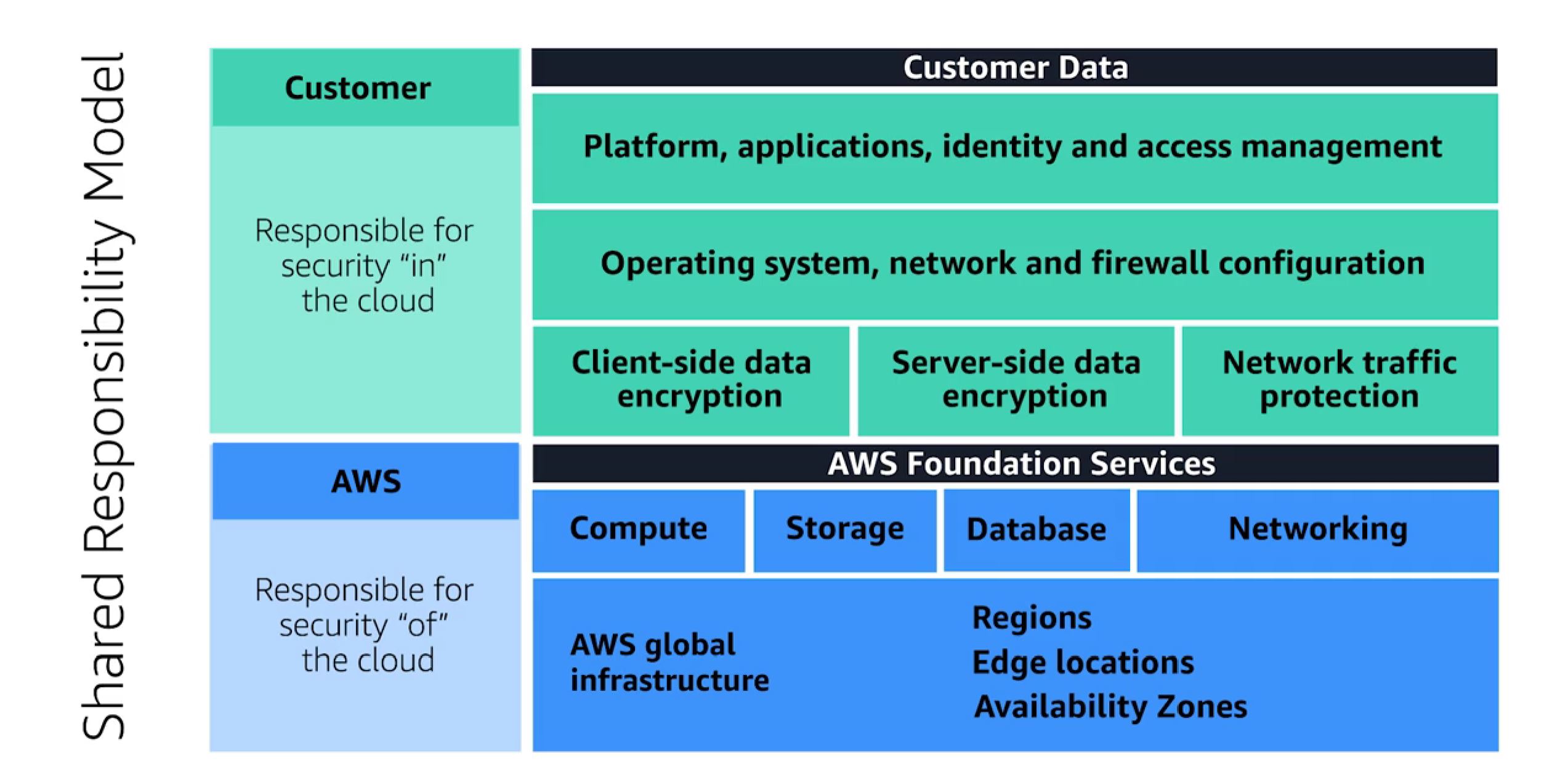

Shared Responsibility Model

AWS responsible for Security OF the Cloud

Customer responsible for Security IN the Cloud

AWS Responsibility:

responsible for security of the cloud.

• Physical Layer
• Network Layer
• HyperVisor Layer
• Manged Services: S3, DynamoDB,RDS etc

Customer Responsibility:

responsible for the security of everything that they create and put in the AWS Cloud.

• OS Root Access & Security Patch for OS
• Application Layer Security
• Data Security
• IAM Access Management
• Encryption of Data

---

AWS Identity and Access Management (IAM)

Global Service to manage users and their access

Principle of least privilege:

Granting only the permissions that are needed to perform specific tasks

Root user

• Owner of AWS Account
• Full control of AWS Account
• Complete Access & Control any Resource you want.
• Multi Factor Authentication (MFA) must be used to login

Only Root user can perform Actions:

• Change Account Setting for Root User
• View Certain Tax invoices
• Close AWS
• Change/Cancel AWS Support Plan
• Restore IAM user permission
• Register as seller in AWS marketplace
• Sign up for GovCLoud
• Edit Delete S3 Bucket policy

IAM users

• 0 permission by default. Can't even login to AWS until given permission
• Grant permission to AWS service by IAM Policy
• Explicitly give permission for each Action

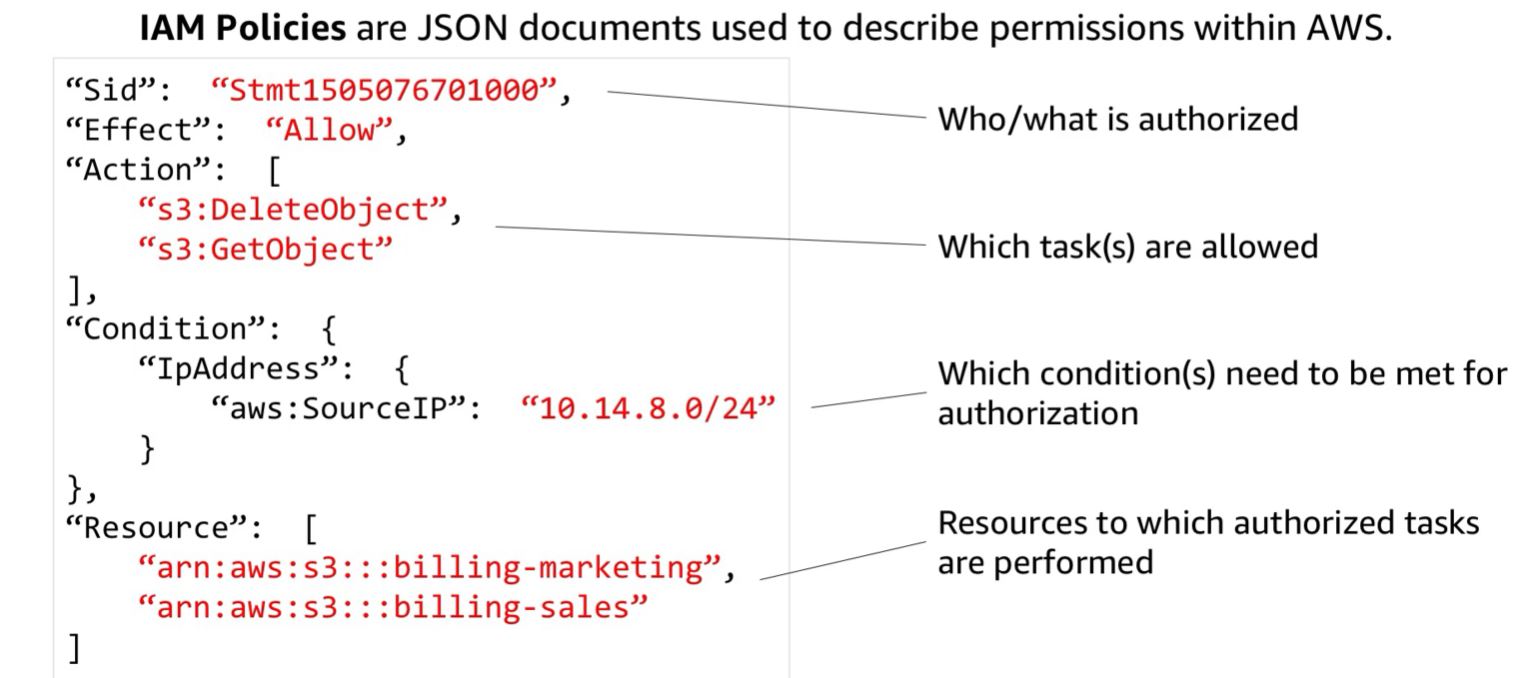

IAM policies

JSON state which AWS services IAM user/ IAM Group/ IAM ROle can access

• For S3 Buckets, Bucket Policy along with IAM Policy need to be considered.

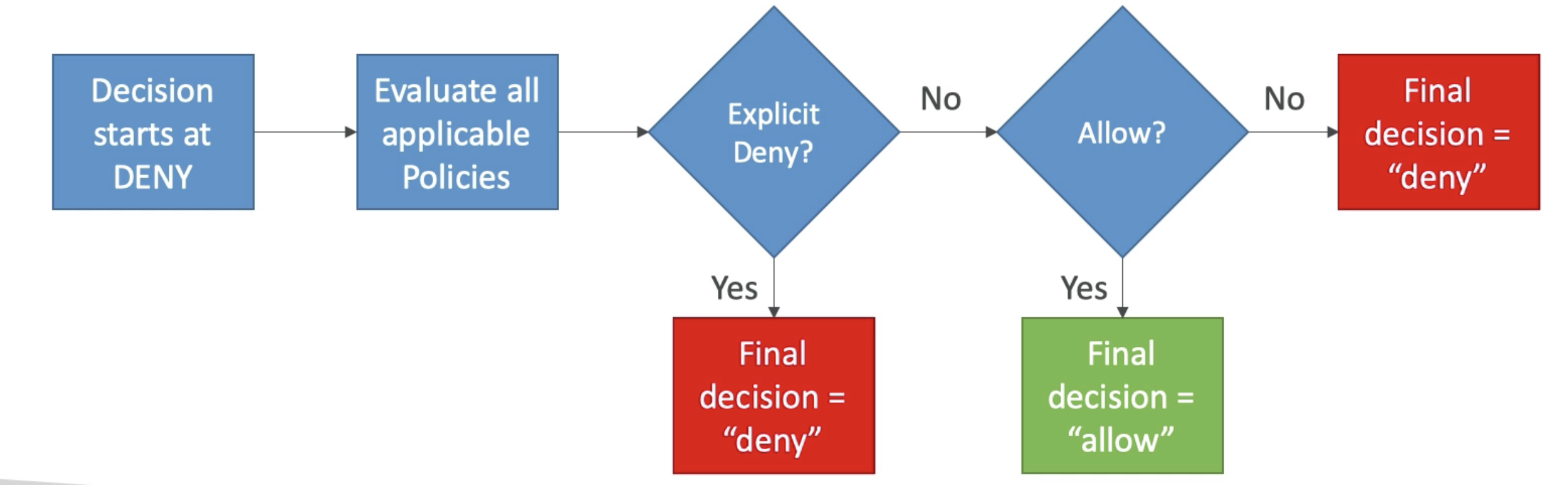

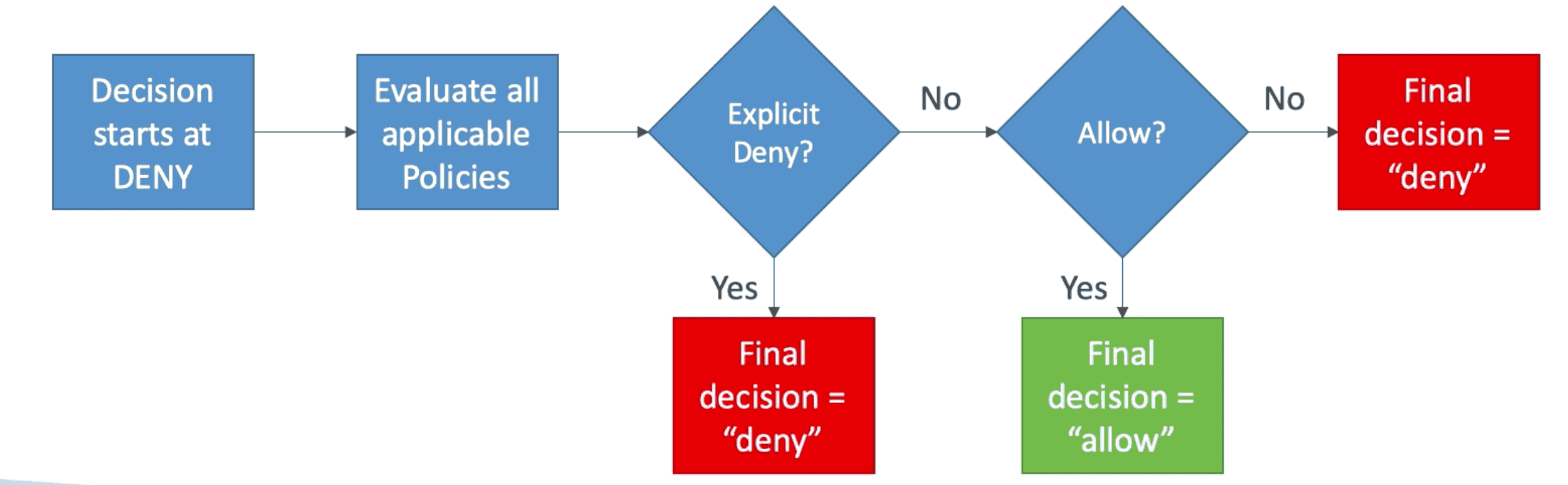

IAM Authorization Model

• Any Explicit Deny--> DENY
• An Allow--> ALLOW
• Else-->DENY(Default)

Inline Policy

Policy added on top of other policy inline for a role

• One to One relationship of user-policy
• Deleted along with user

Policy Generator

Visual editor to generate Policy

Policy Simulator

Simulator for Policy access validation

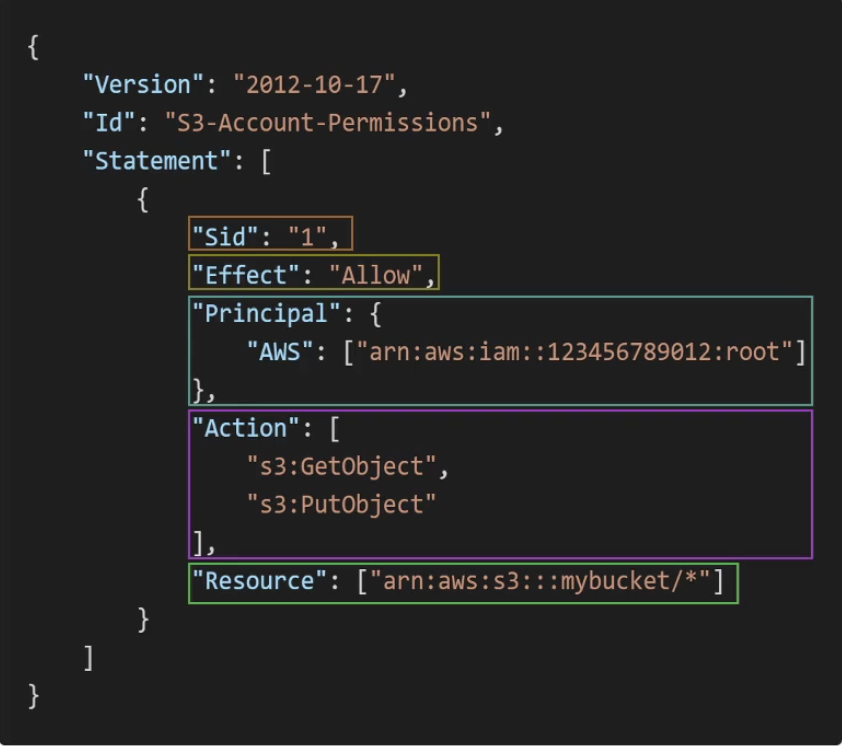

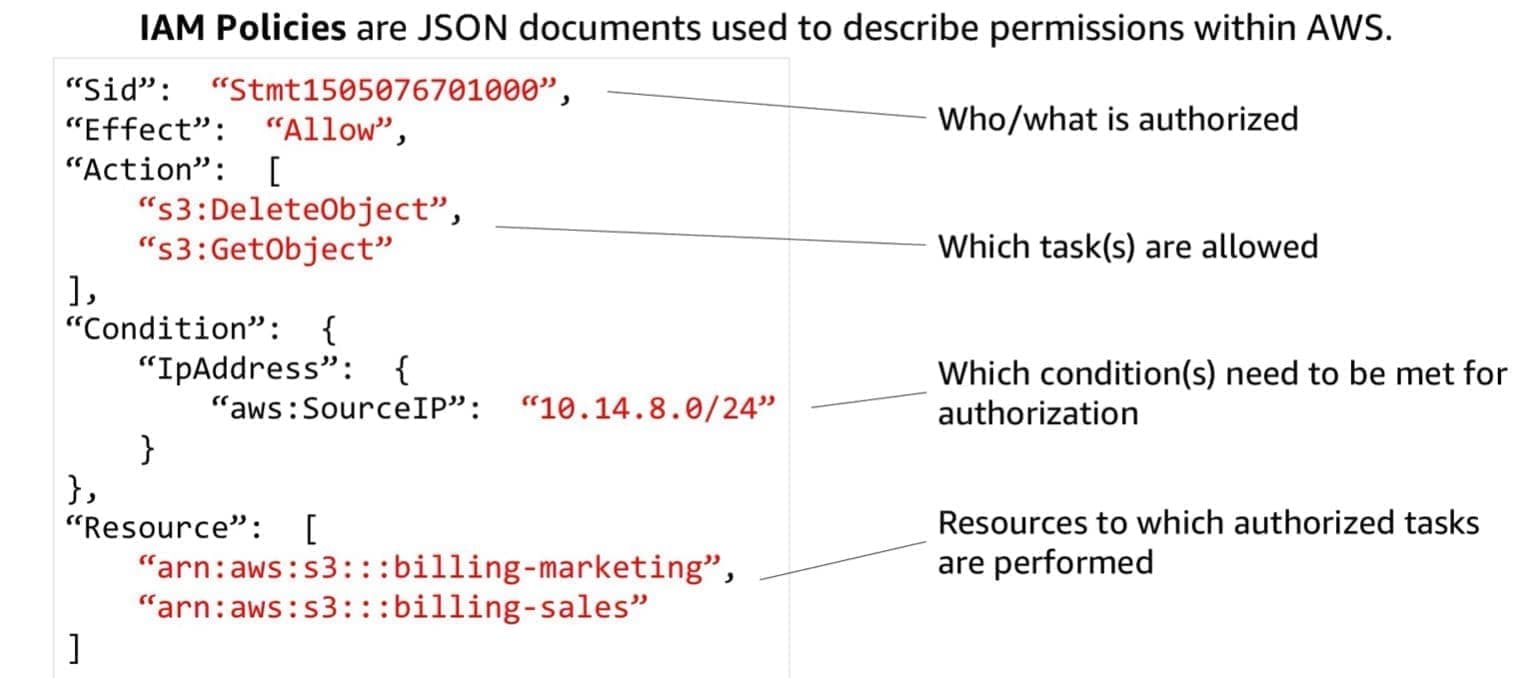

Structure

• Version Number: Version of Policy
• ID(Optional): Identify policy

Statement:

Define; Action/s can be performed by Principal on Resources as an Effect

• SID(Optional): Statement ID identify the policy statement
• Effect: Allow/ Deny as effect of policy
• Principal: Account/User/Role Policy apply to
• Action: List of API Calls
• Resource: List of Resources
• Condition: condition when Policy apply

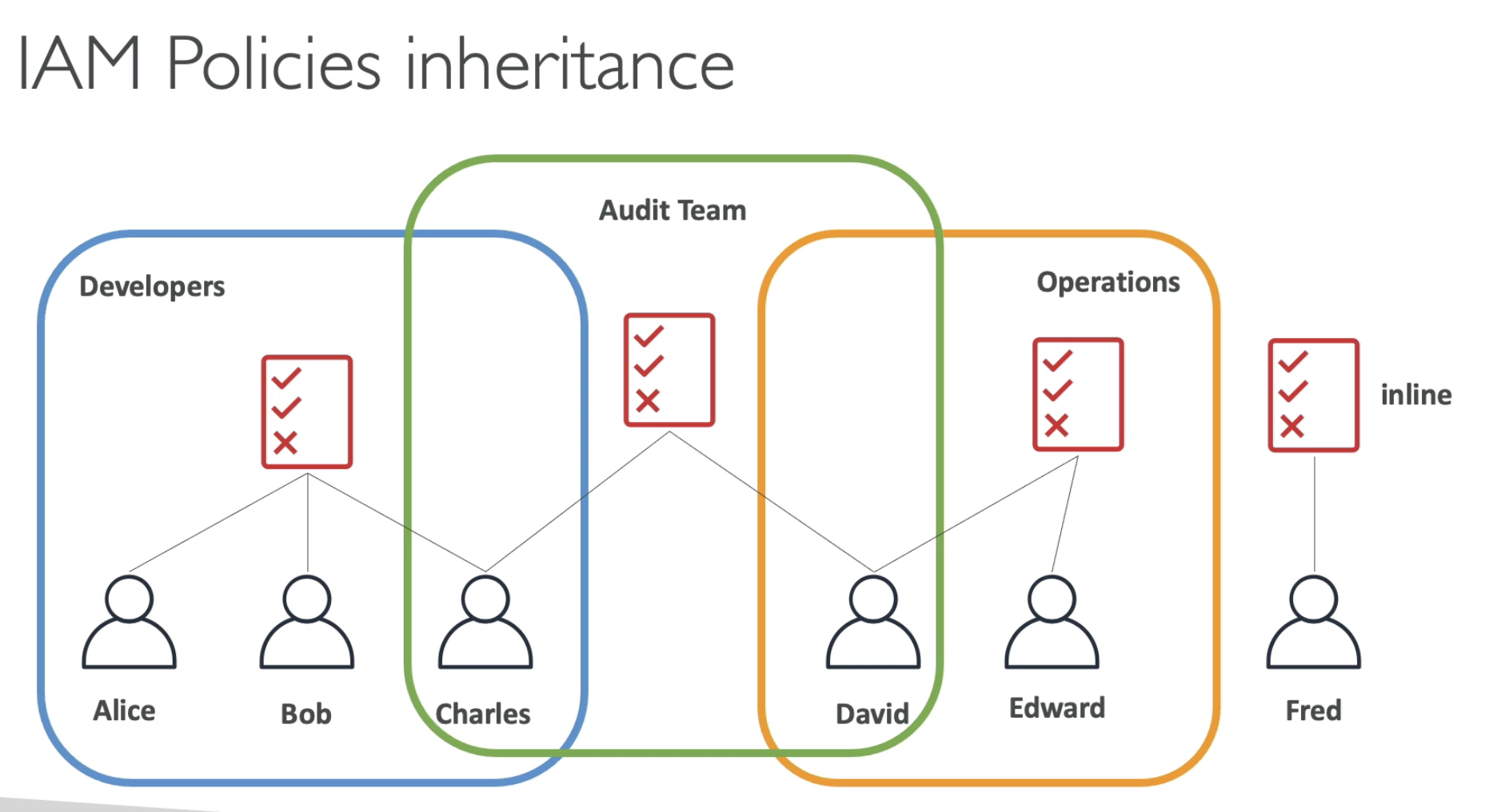

IAM Group

• Assign IAM Policy to a Group of IAM Users
• Only contain IAM Users not other Groups
• Multiple Group can belong to IAM Users

IAM Role

Temporary grant access to resource, users, apps, other aws services https://console.aws.amazon.com/iamv2/home#/roles

• Allow/ Deny Permission to services to call other service on your behalf
• No username or password, ACCESS KEY is assigned dynamically
• Used by other AWS services
• Common Roles:
  • EC2 Role
  • Lamda Role
  • Cloud Formation Role

Within AWS use IAM Role as much as possible

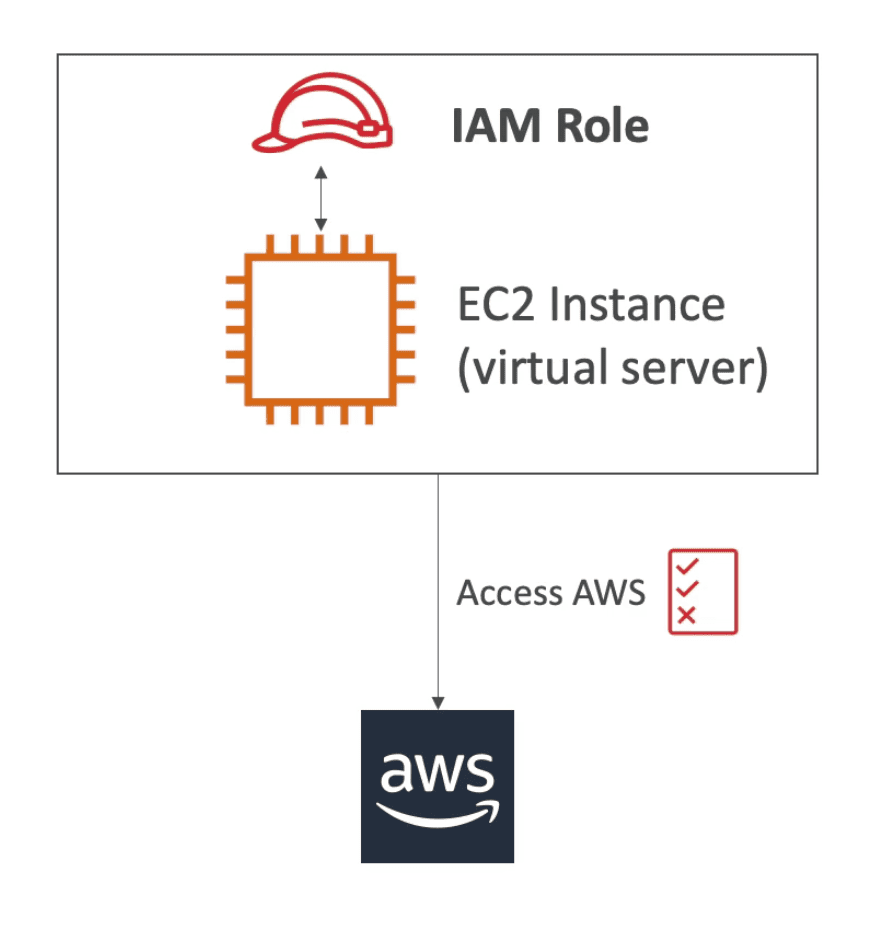

• EC2 Instance Role for EC2 Instance
• ECS Role for ECS tasks
• Lambda role for Lambda Function

Outside AWS

• Use Environment Variable
• Named profile using cli configure for multiple account setup

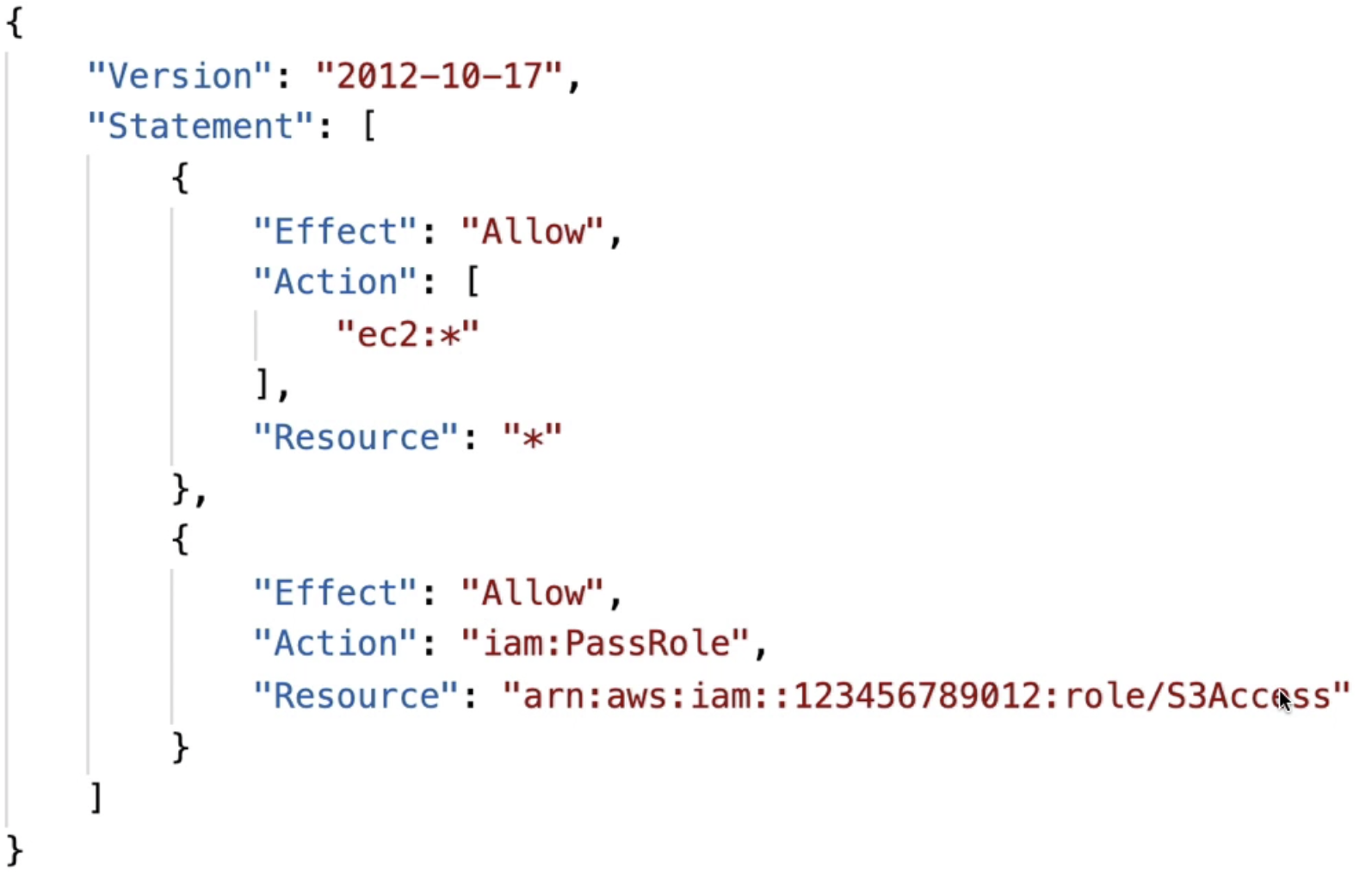

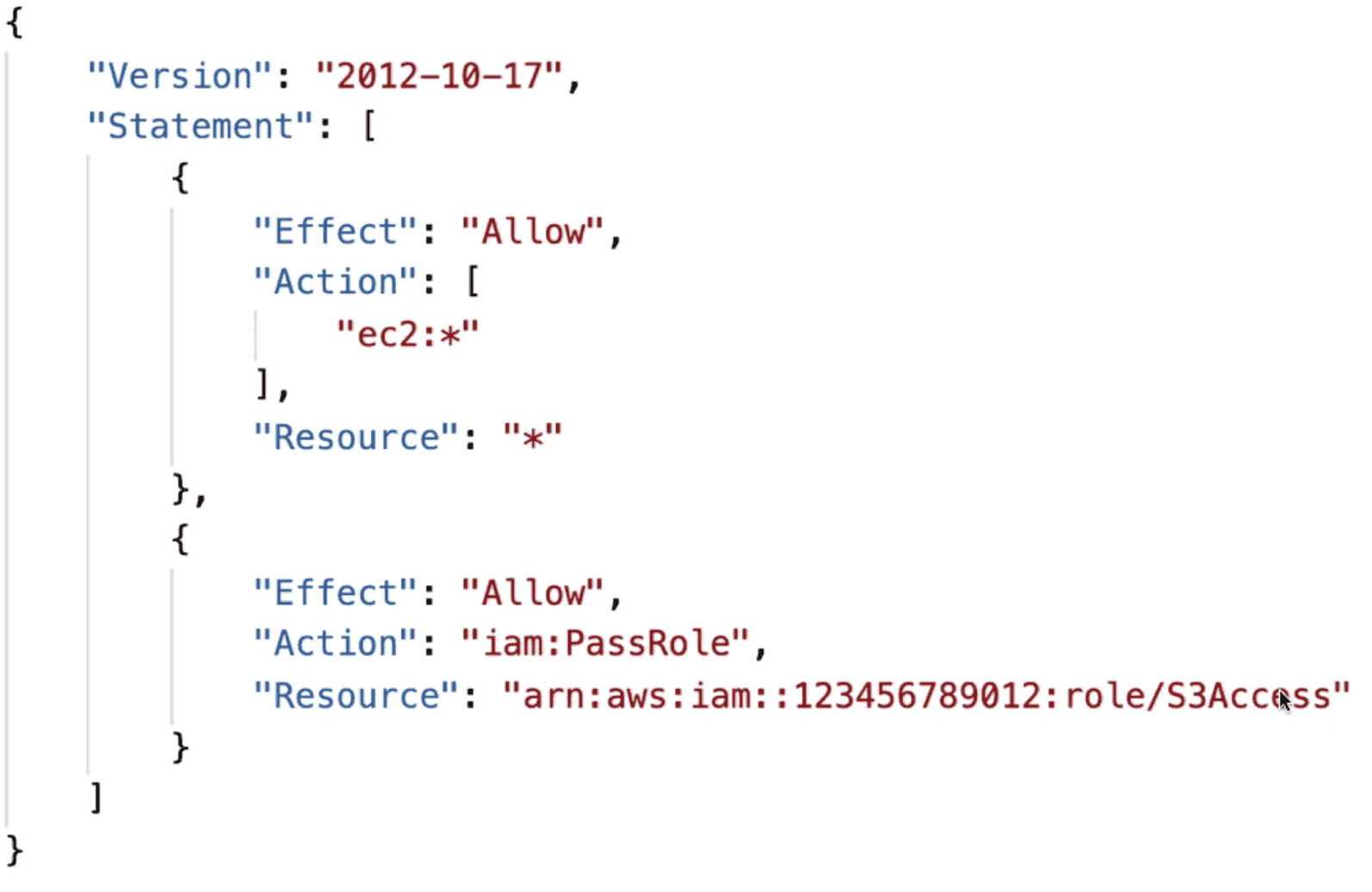

Permission needed to pass role to other service

• iam:PassRole: IAM permission to pass role
• iam:GetRole: View Role being pass

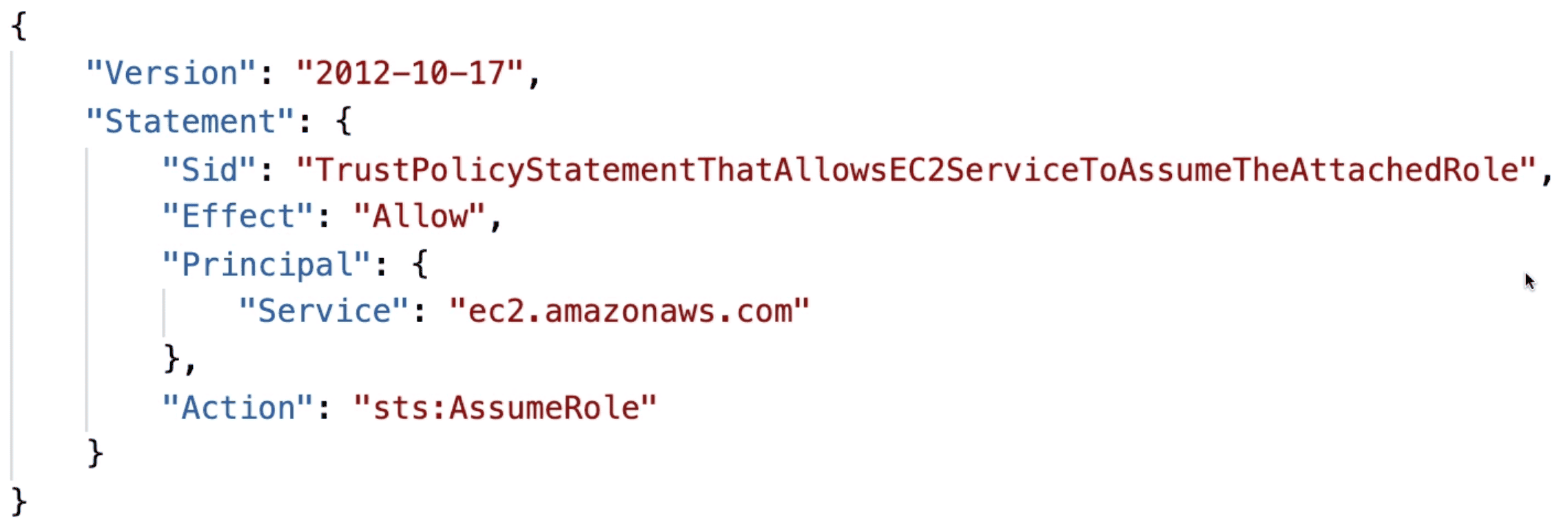

• trustpolicy: Role can only be pass to a service which is defined in trustpolicy

---

Password Security

ACCESS KEY

• SDK & CLI need to access AWS cloud using ACCESS key

• 1. AWS Management Console

  Browser Based tool used for testing & learning

• 2. SDK (Software Development Kit)

  Developer can use API in various languages

  • JS, C++, Java, .NET, NodeJS, PHP
  • Embed within App & IOT

• 3. CLI (Command Line Interface)

  Used for Automation script in Windows, Mac & Linux.

  • Direct access to AWS Public API
  • Open source

AWS CloudShell

Execute Command directly on cloud

• Free to use
• Come with 1GB storage to persist Script
• Download/ Upload Files
• Not available in all regions

Set AWS Password Policy

• Set Policy on user password
• Allow user to set password
• Force user to change password
• Prevent reuse

MFA Multi Factor Authentication

Password + Security Token

1. Virtual MFA Device :

software app that runs on a phone

• Google Authentication(Phone Only), Authy(Multiple Device)

2. UTF/U2F Key (Universal Second Factor Key):

device that you can plug into a USB port on your computer.

• U2F is an open authentication standard hosted by the FIDO Alliance.
• sign in by entering your credentials and then tapping the device instead of manually entering a code.
  • Physical Device Yubikey

3. Hardware Key Hub:

hardware generating key

• Gemalto, SurePass from US Governments

IAM Security Tools

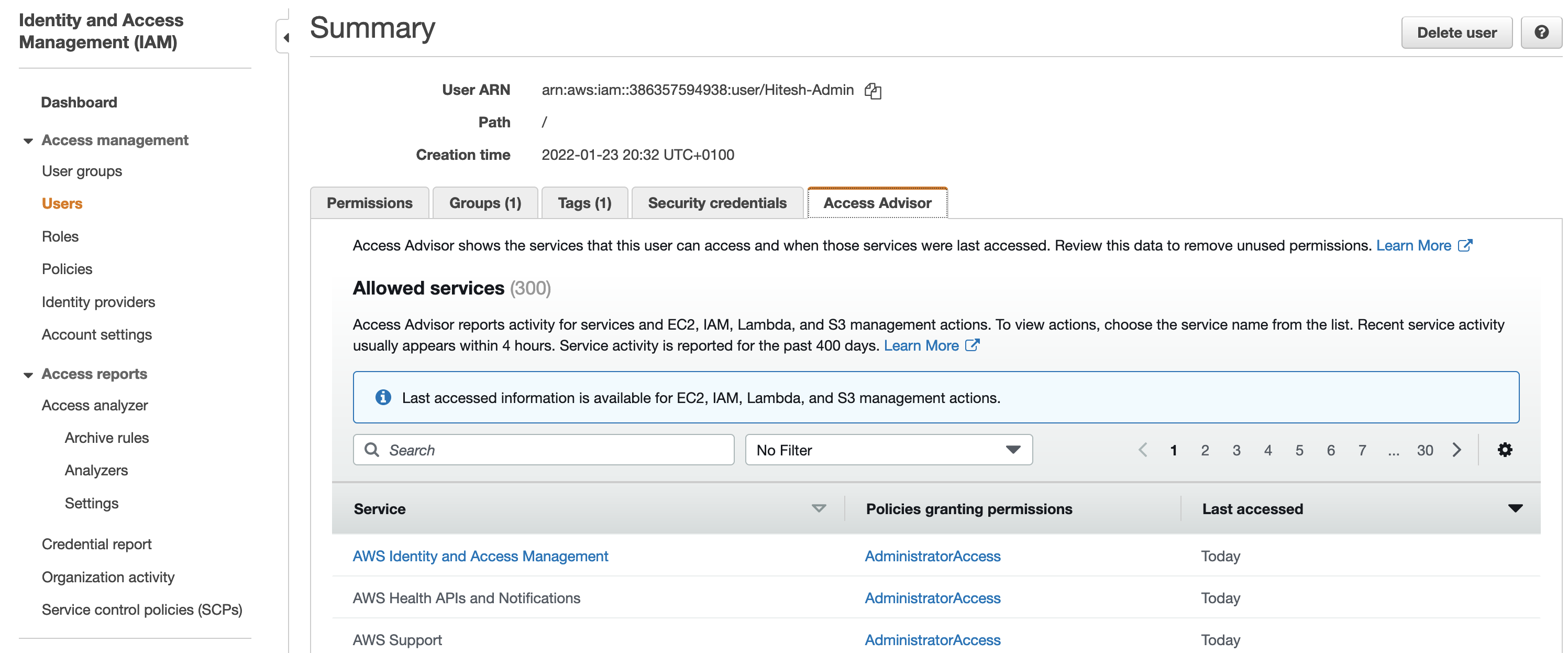

IAM CREDENTIAL REPORT	IAM ACCESS ADVISOR
Account Level	User Level
List of user & status of their credential	Service permission granted to user
Look at user security	Look at API used by user account to remove service not used by user out of 300 services

---

AWS Organization

Group accounts into Organization unit(OU)

• Center Location to Manage all accounts
• Global Service
• Combine billing for all accounts and get discount
• Hierarchal group accounts for security and compliance
• Account creation can be automated with help of script

Consolidated Pricing

• Pay price by combining bill of all AWS Account
• Easier to pay bill because we need to pay bill at single location
• Bulk Pricing Discount on aggregate amount
• Free of cost

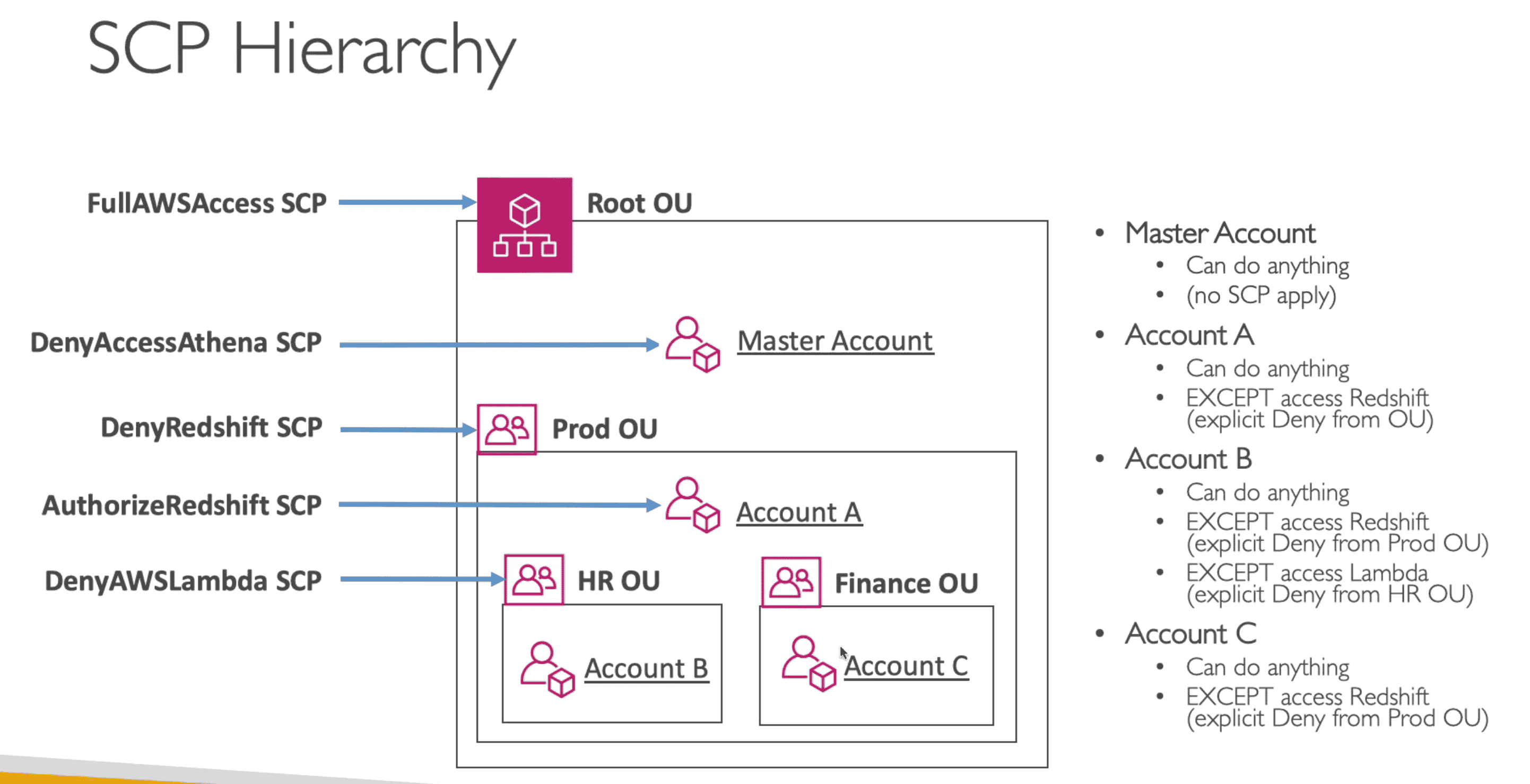

Service control policies (SCPs)

centrally put restrictions on the AWS services, resources, and individual API actions that users and roles in each account & OU can access.

• Whitelist/Blacklist IAM Action in OU
• Apply at OU or account level
• Does not apply at Master Account
• Top Level SCP take preference over account level SCP
• Does not allow by default. Must have a explicit allow

AWS Control Tower

Dashboard to manage all accounts & OU

• Better way to manage organization
• Best practice to create a multi account organization
• Automated setup and free of cost

Accounts:

1. Master Account: admin account for billing
2. Log Archive account: immutable logs for audit
3. Audit Account: Compliance account for Audit

Guardrail: rule to govern OU

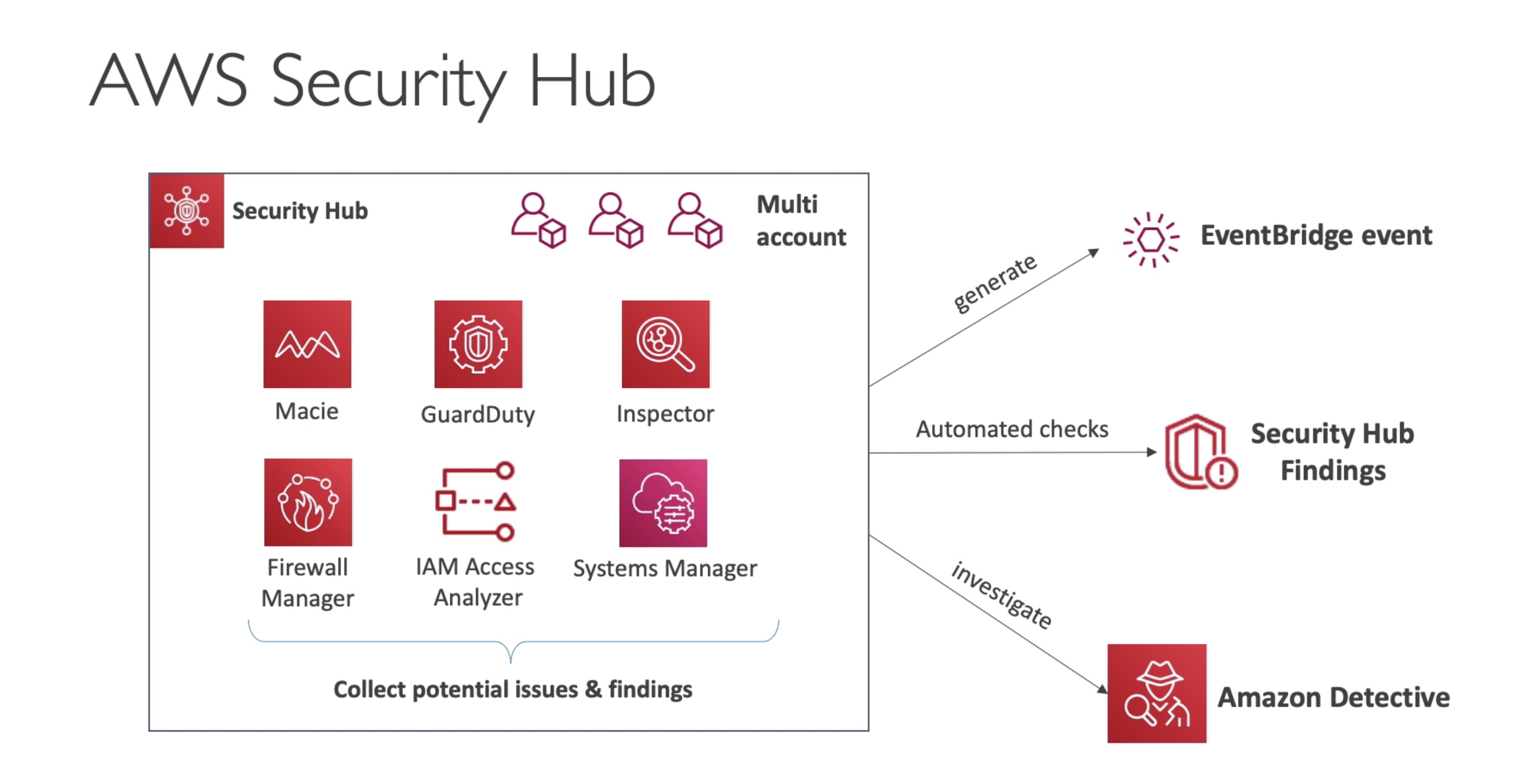

AWS Security HUB

Centralize Hub to show Notification & Action in unified Dashboard

---

SECURITY TOKEN SERVICE (STS)

Give IAM Role to user with limited & temporary access to AWS resources privilege for 1 hour

• Give short term Security Access & Session key with expiration time valid between 15 Minutes to 1 hour
• Used behind the scene

APIs

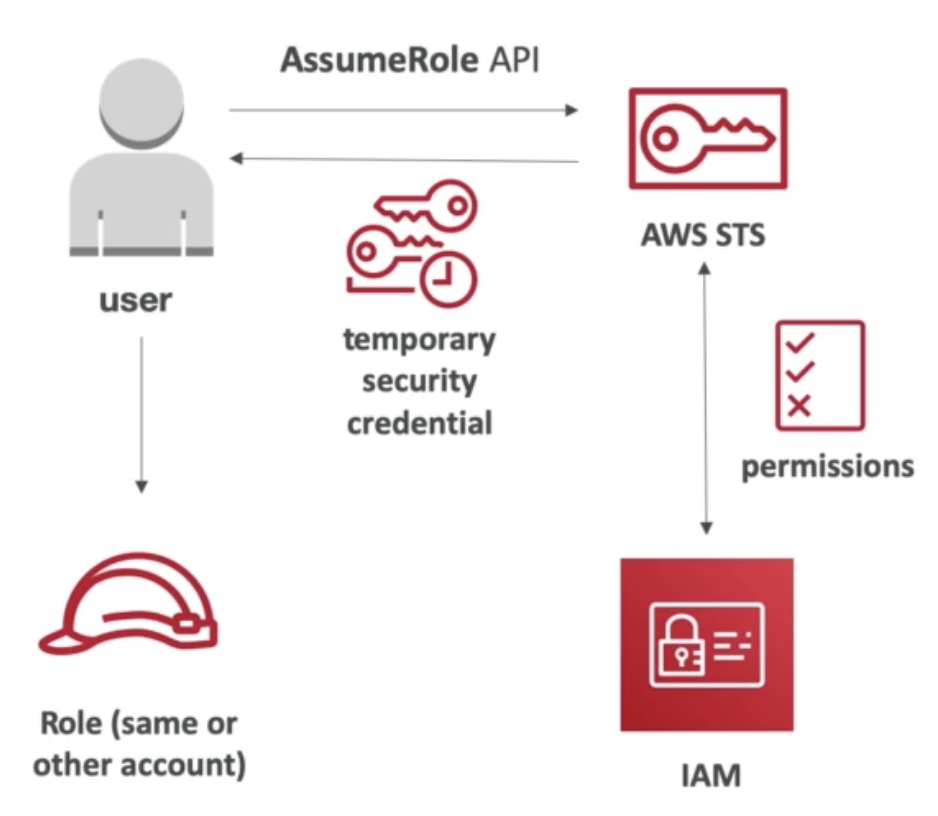

AssumeRole

IAM User assume a role to perform some tasks for added security.

• AssumeRoleWithSAML: using SAML Token to Login as IAM user

• AssumeRoleWithWebIdentity: allow access via facebook, gmail

GetSessionToken:

used to get MFA to get session token Return:

• Session ID
• Secret Key
• Session Token
• Expiry date of Session Token

GetFederationToken: temp credential for federated user

GetCallerIdentity: detail about IAM User & role used in API call

DecodeAuthorizeMessage: decode error message

Identity Federation

User management by third party. AWS trust the Identity form third party eg SAML

Amazon COGNITO

Direct access to external clients from Mobile & Web User

• Preferred over using AssumeRoleWithWebIdentity
• Internal Database of user to create IAM user for Mobile & Web users.
• Identity management for users from login with FB, Google, SAML

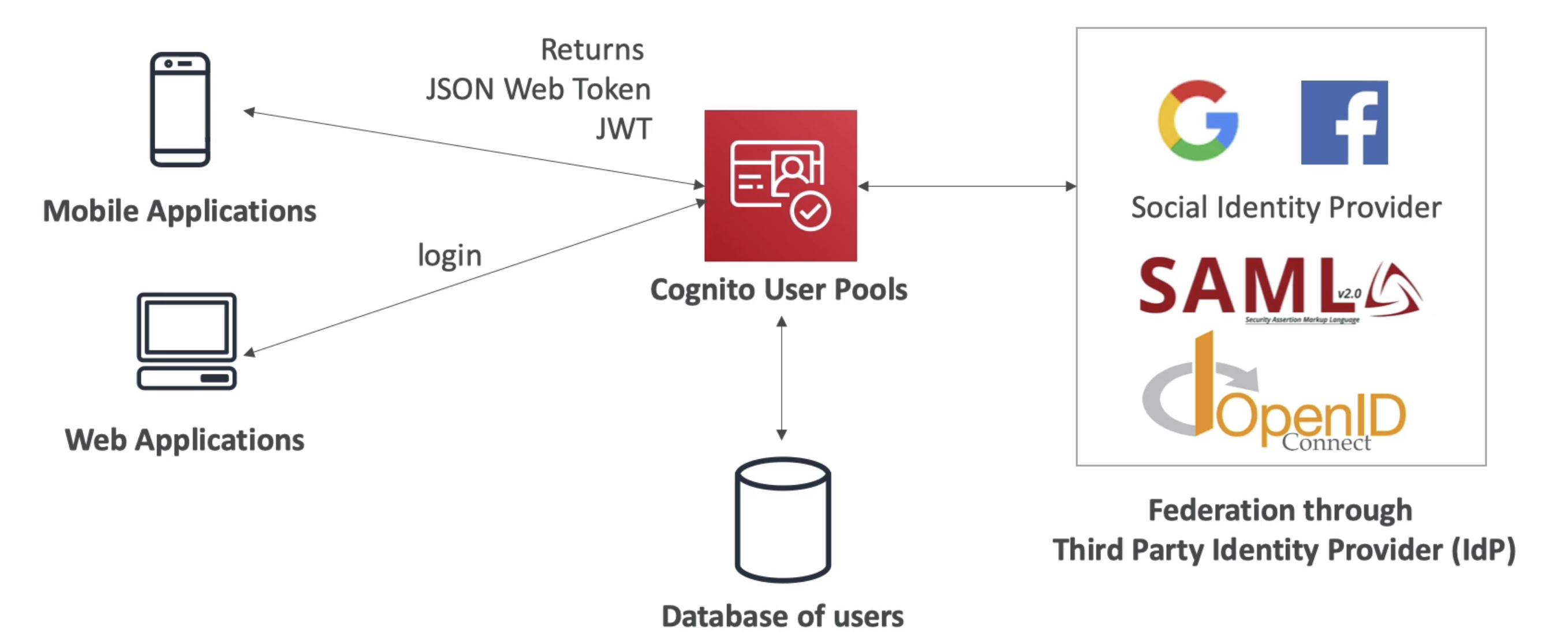

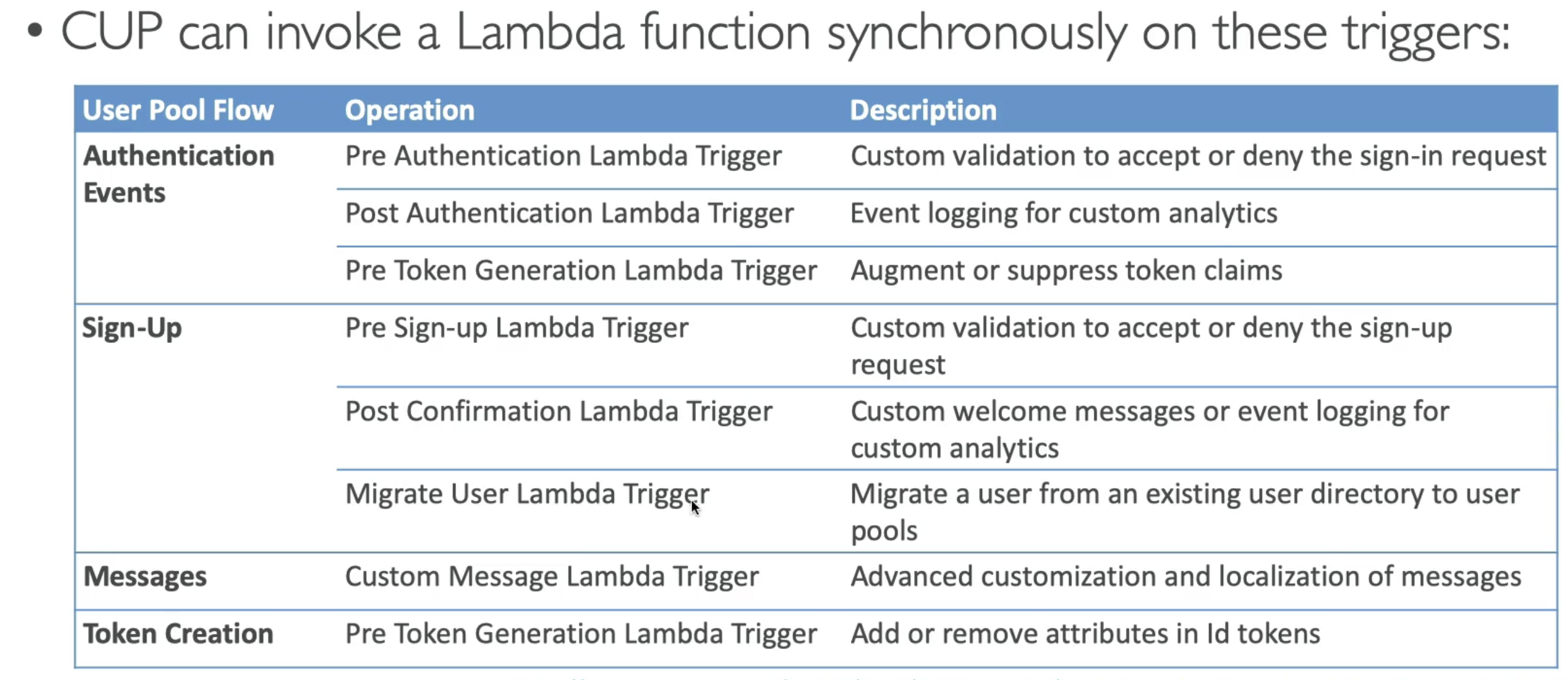

Cognito User Pool (CUP)

Serverless DB of Mobile & Web Users

• Allow User to Sign in using email, phone number, gmail, facebook, SAML
• Good for external user management
• Support MFA
• Send back JWT(JSON Web Token)
• Provide ready to use Login Page as Hosted Authentication UI

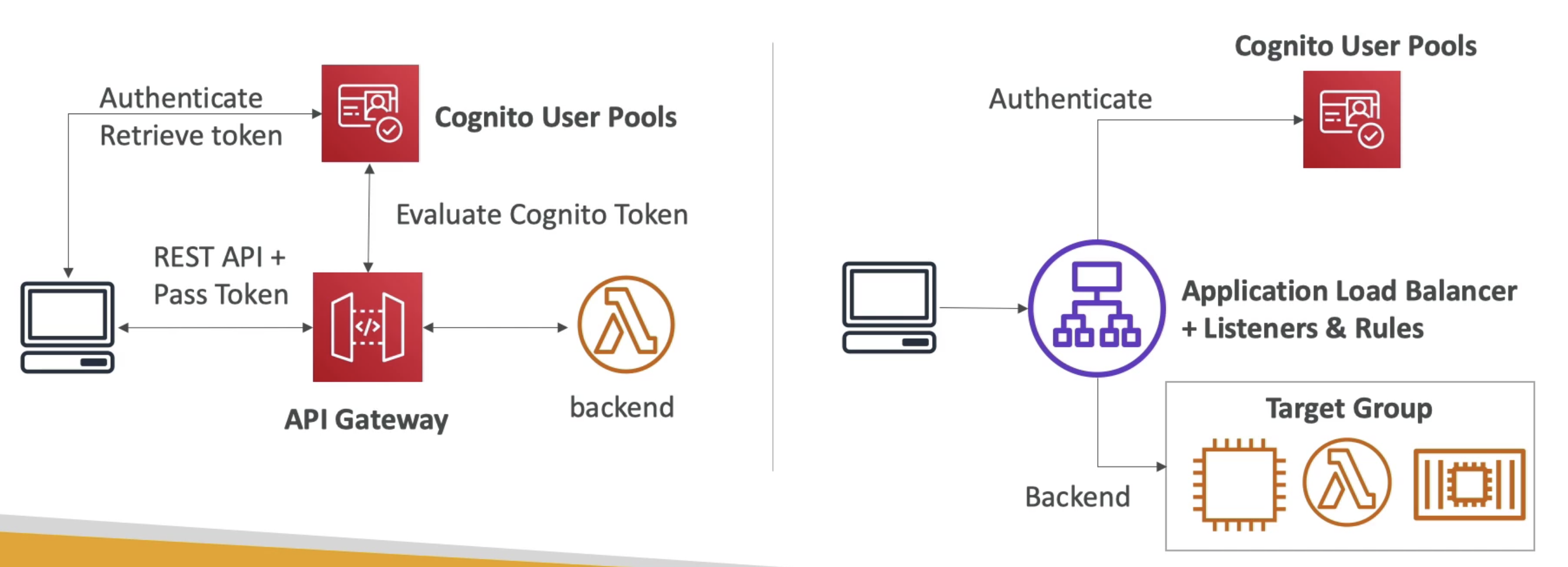

• Integrate with APIGateway & ALB to Authenticate user on Backend

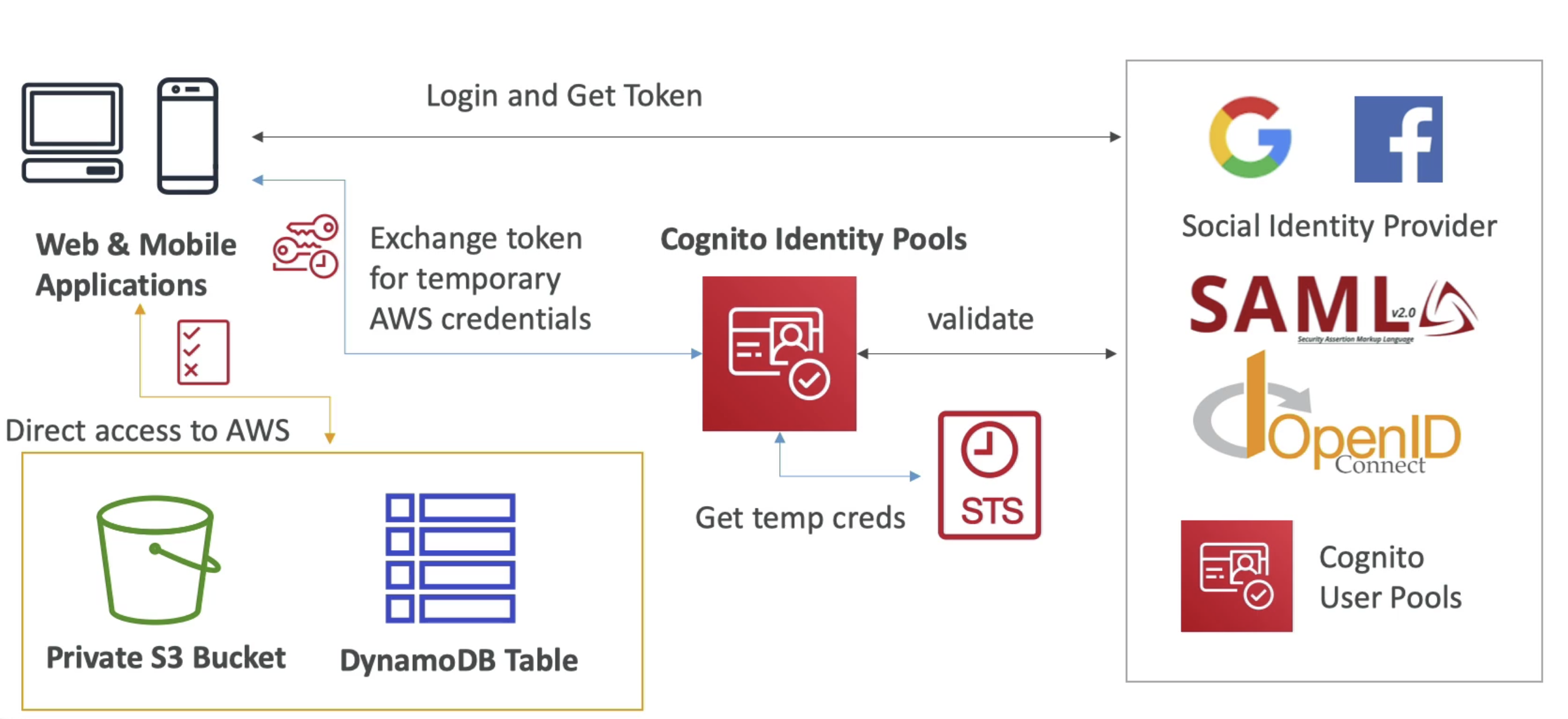

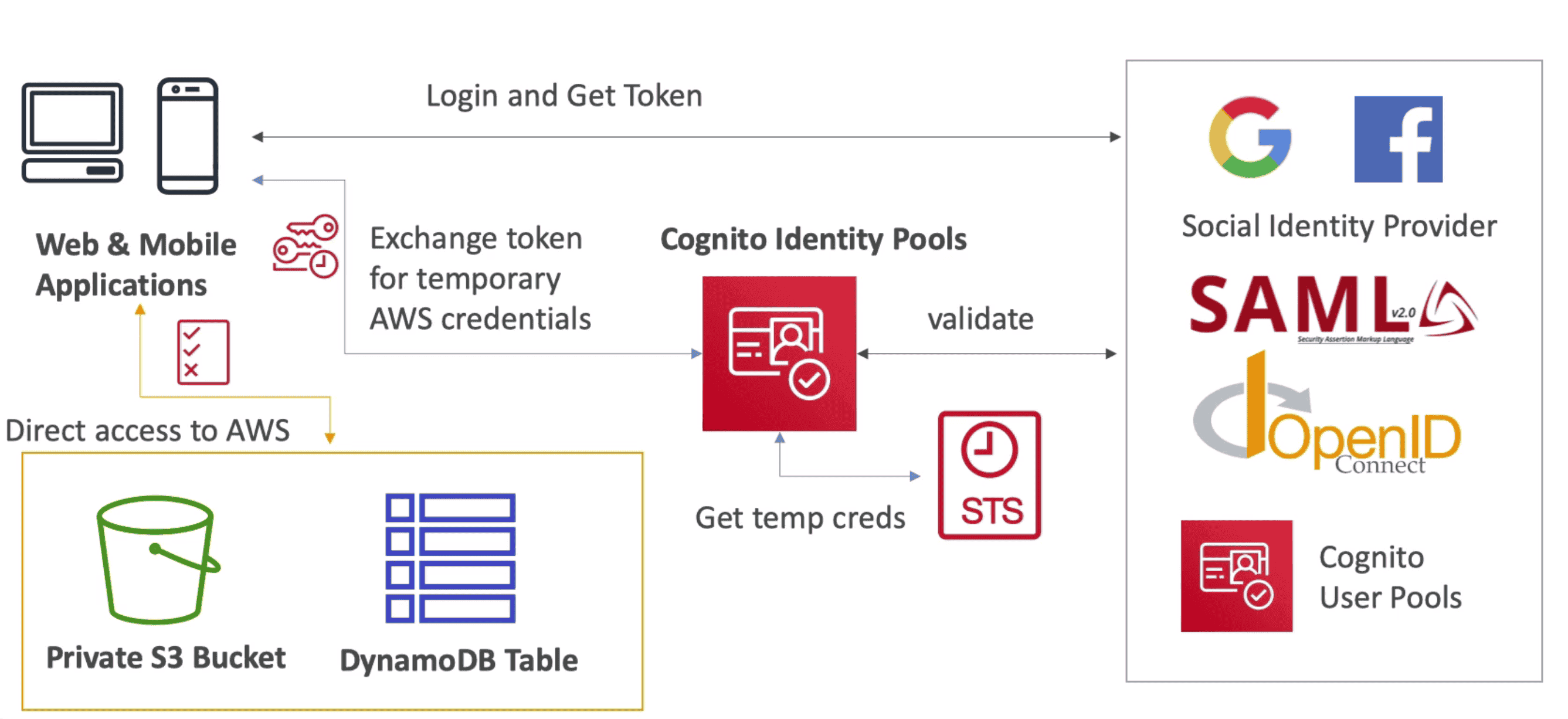

Cognito Identity Pool (FIP)/ Federated Identity

Provide Direct Access to AWS resource for Mobile or Web Users

• Connect with Identity Provider to validate user and give temporary credential with help of STS.
• Identity Source could be
  • Cognito User Pool(CUP)
  • Public Provider: Google, Facebook, Apple etc
  • OpenID & SAML
  • Custom Login Server
  • Anonymous Guest user
• Provide Temporary Access Token to user using identity provider
• Use Identity Provided by pool to access AWS Service or API Gateway with attached IAM Role

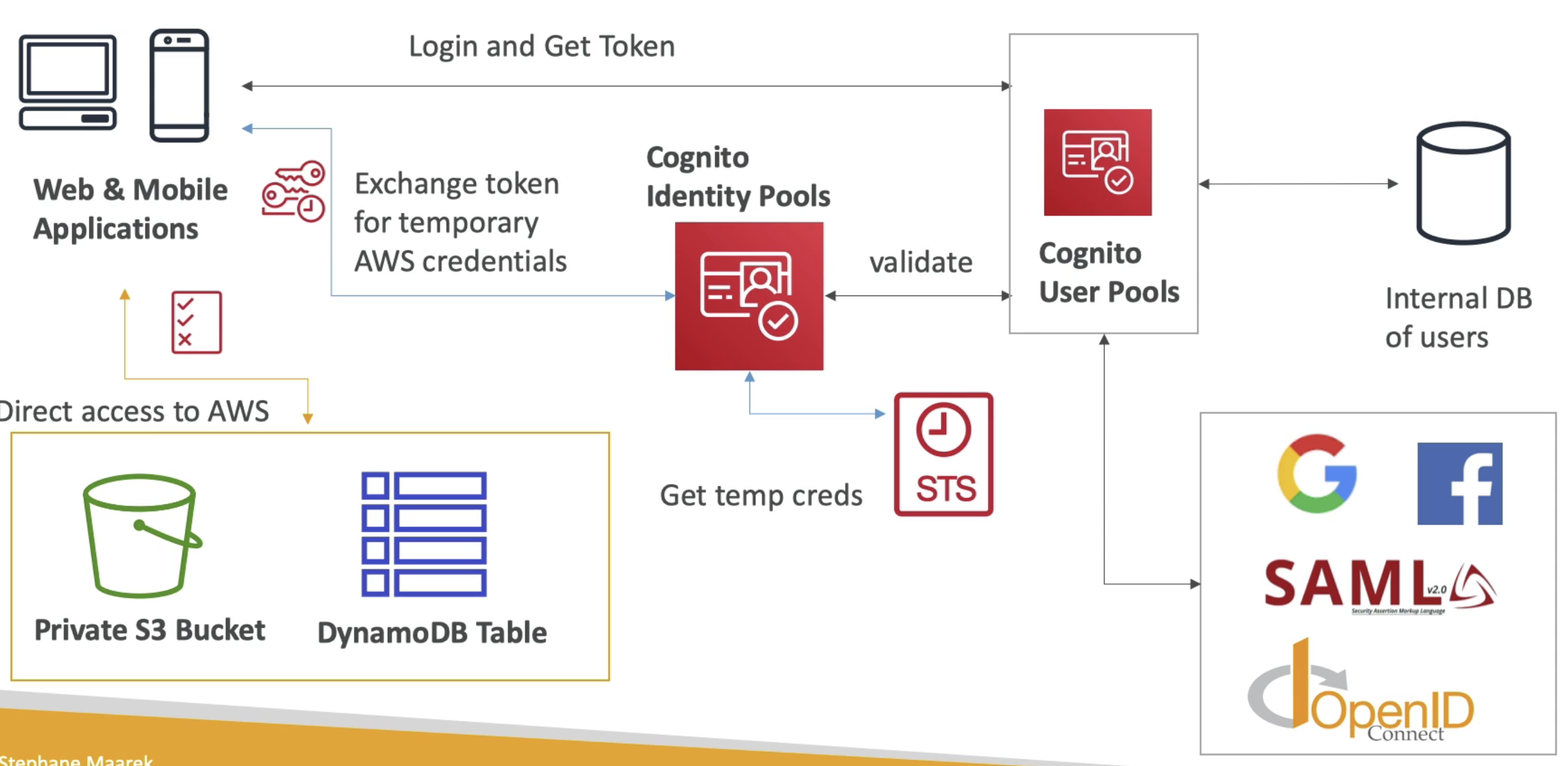

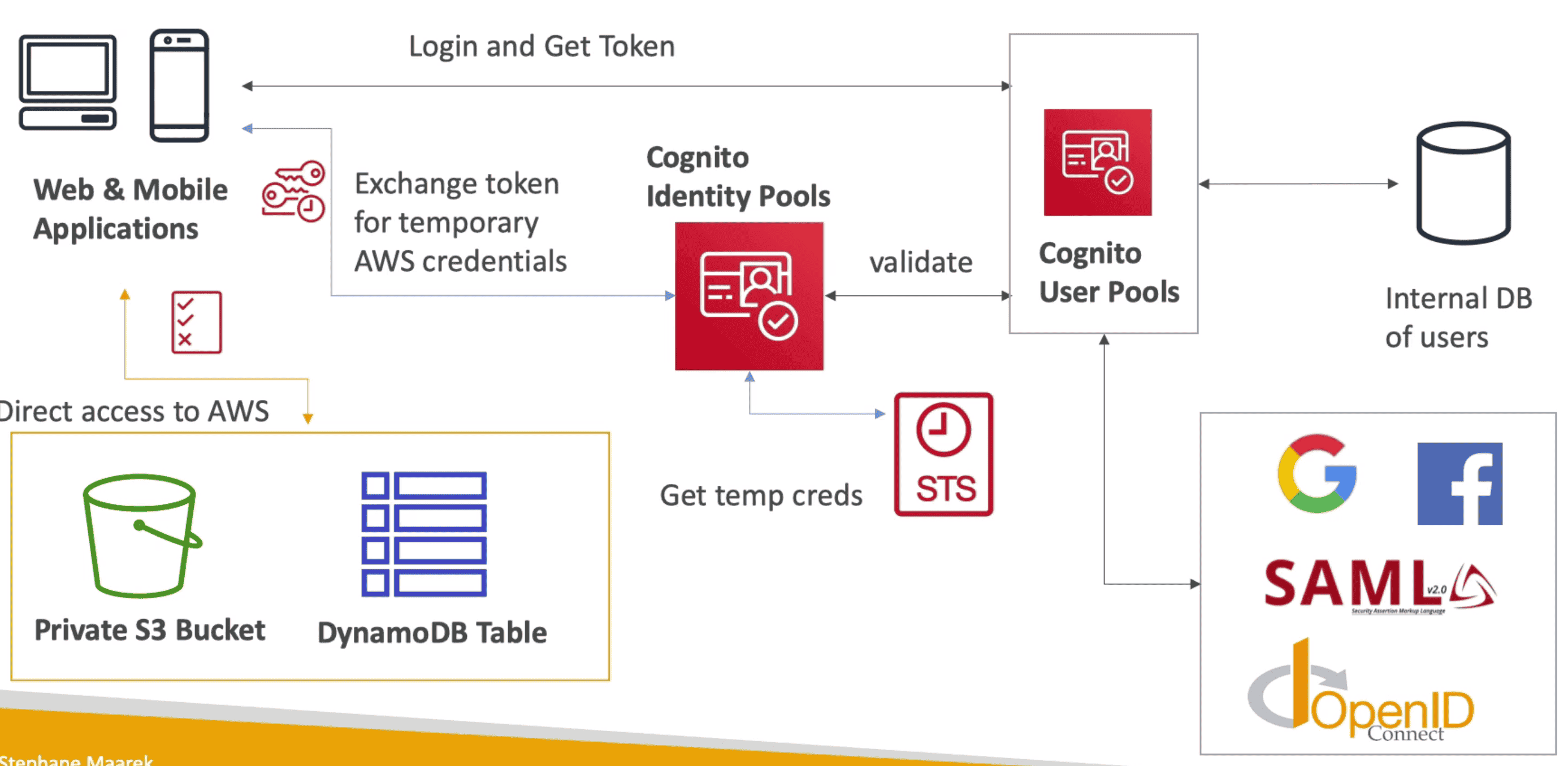

Using CUP to authenticate

Cognito Sync

synchronize user profile data across mobile devices and the web without requiring own backend.

• Sync preferences, configuration & state from device to Cognito
• Deprecated in favour of App Sync

Microsoft ACTIVE DIRECTORY SERVICE (AD)

AD Found on Window Server, AD Service help to integrate AD on AWS

• DB of Objects with Centralized security management
• Objects are group as Tree and Tree into Forest
• Manage user Printer Objects using active directory service.
• Domain Controller allow user access to any machine connected to AD

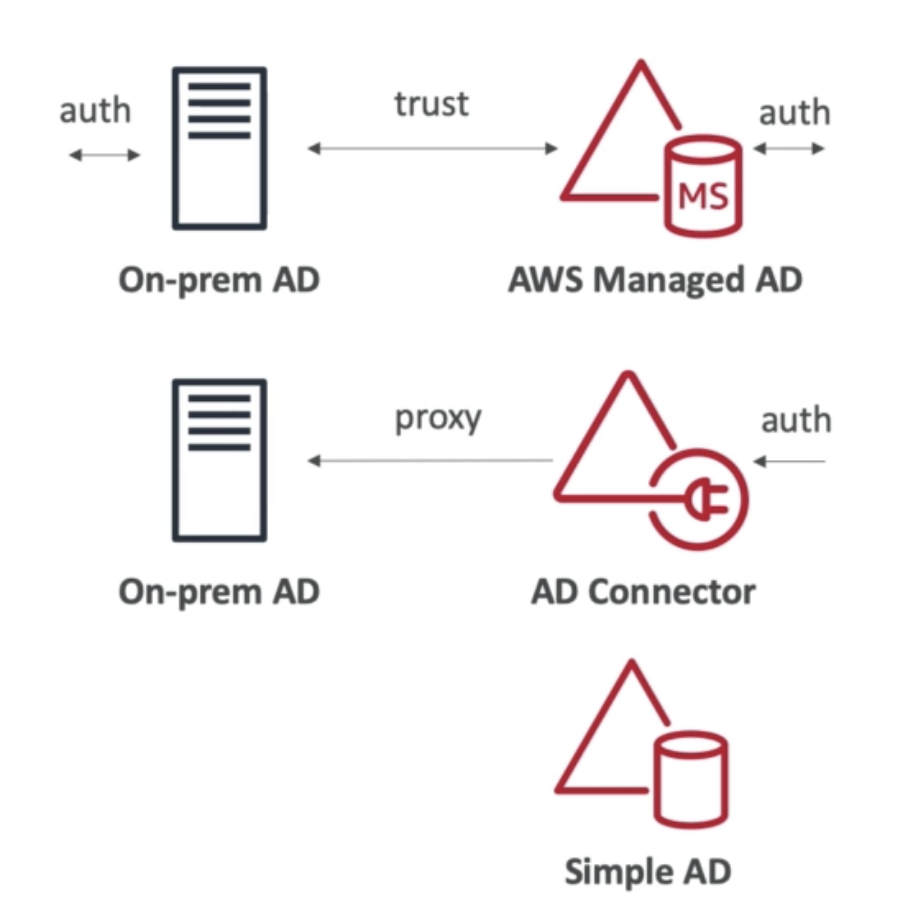

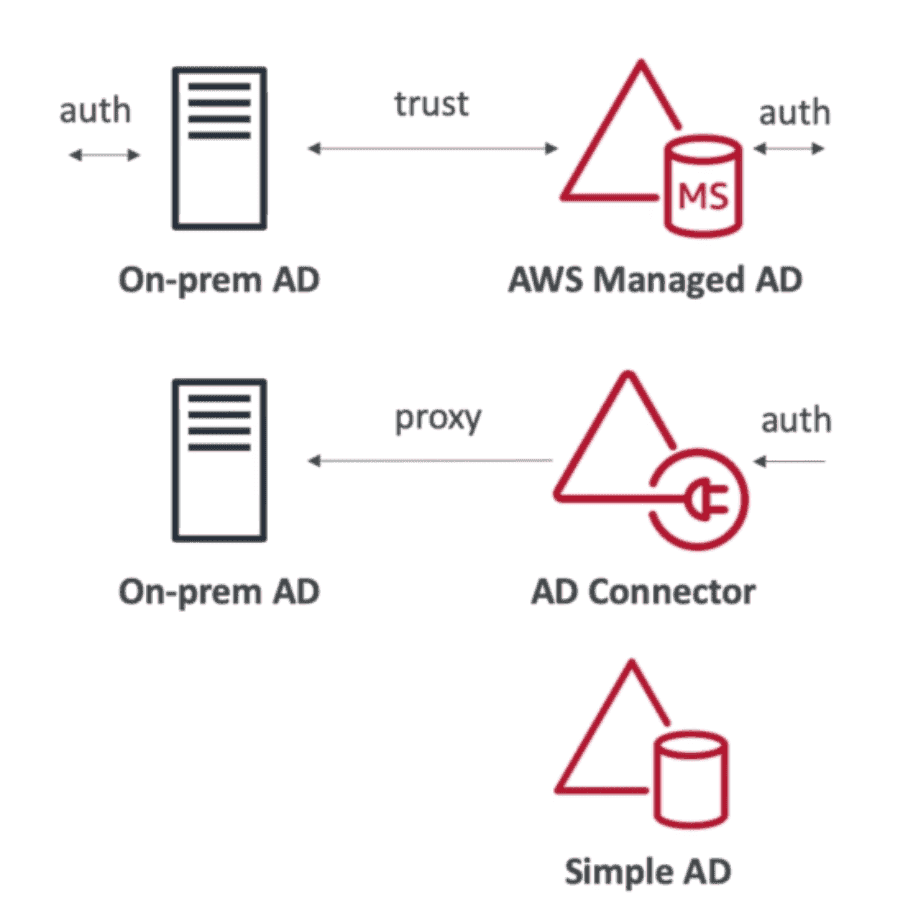

Flavour

• 1. AWS Managed AD:

  Create own AD on AWS or connect with on-premise AD using Trust.

  • Support MFA
• 2. AD Connector :

  Use Proxy to route on-premise AD to AWS. User manged in on-premise AD.

  • connect from 500-5000 users
• 3. Simple AD

  Standalone AD on AWS. Cant use with on-premise AD

  • Cant be used with on premise AD

SSO Single Sign On AUTHENTICATION

• Single Login to access all accounts on Organization
• Support SAML 2.0 Markup
• Can be integrated with on premise AD, AWS Console, Business Cloud Apps as well as Custom SAML

ENCRYPTION

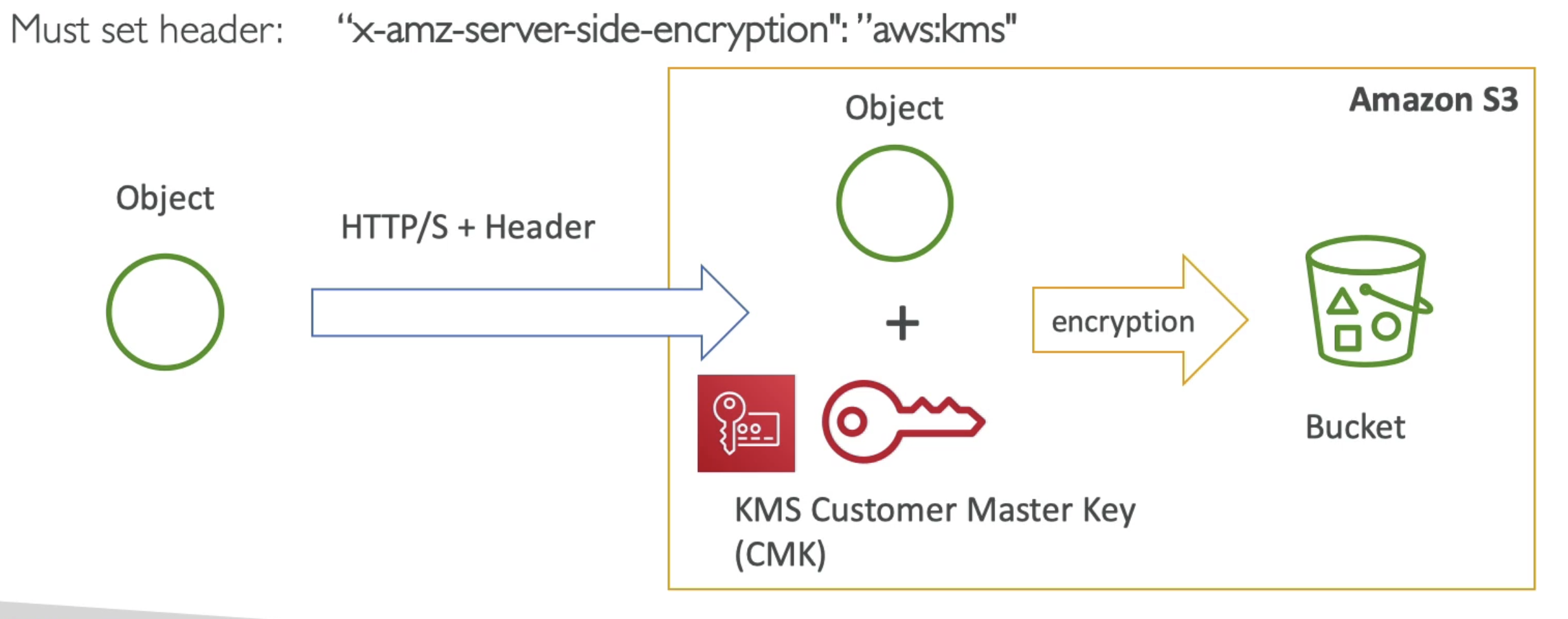

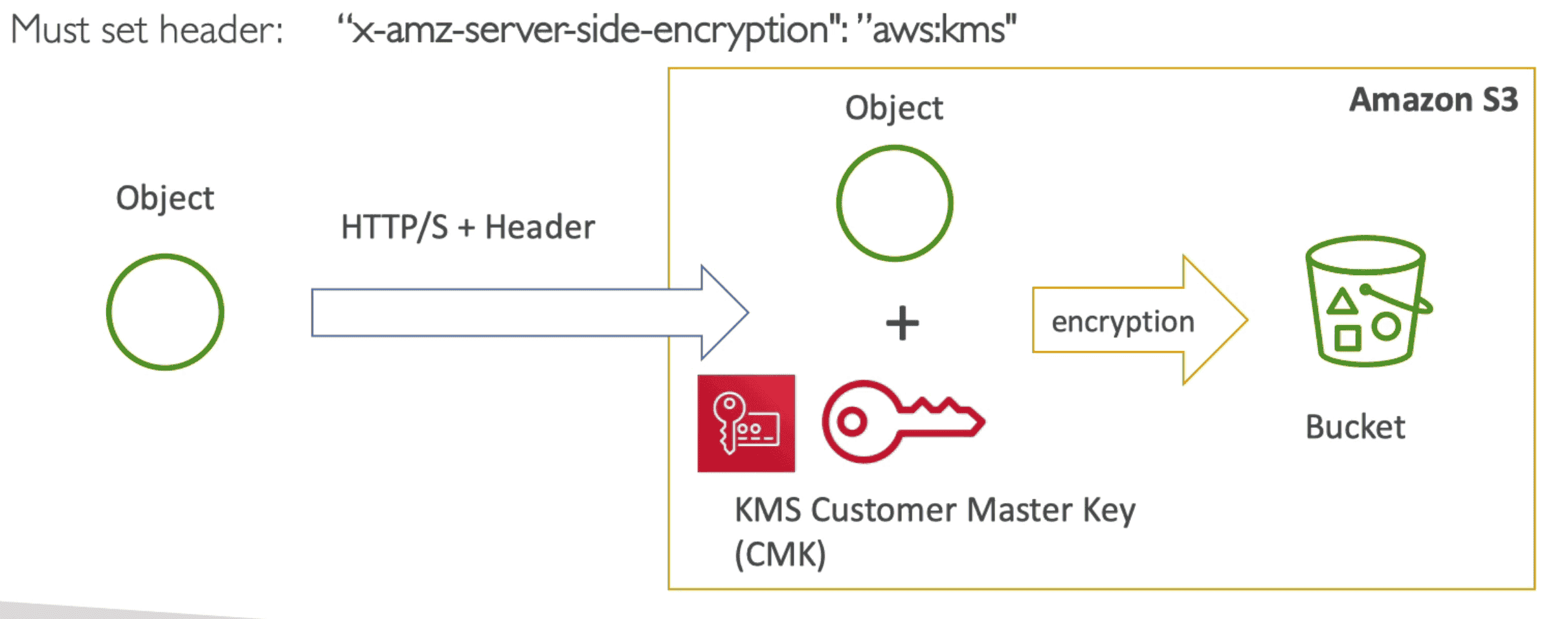

AWS KMS (KEY MANAGEMENT SYSTEM)

Create keys to Encrypt data in Transit & Rest

• AWS Mange Encryption Keys: Fully integrated with IAM
• <=4KB: use Encrypt/Decrypt API
• >4kB : Use envelop encryption using Generate Data Key
• Key Rotation happen every 1 year
• Supported by SDK ( Java, Python, C, JavaScript) & CLI

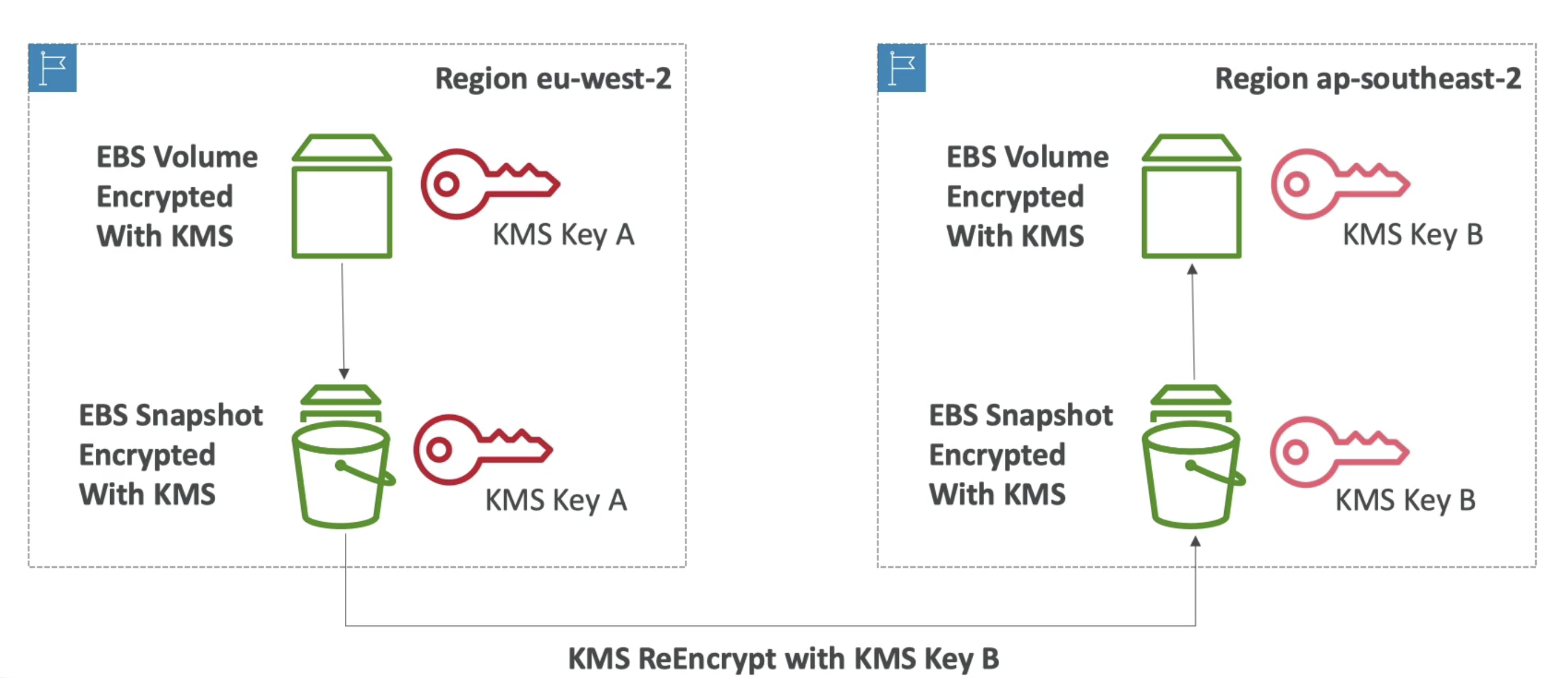

• Key is Bound to a Region: While copying Snapshots we need to re-encrypt using new KMS Key

Encryption of data on Storage & DB

• Encryption enabled by default: EFS
• Support Encryption:
  • EBS, S3
  • RDS, Redshift, ElastiCache,
  • AWS Lambda, Amazon SageMaker.

DataKey Caching

Cache Key to reduce number of call to KMS

• Reuse Data key can cause security risk
• LocalCryptoMaterialsCache: Define number of time can be used before key rotation

Throttling Exception

When Quota for KMS Service limit exceed

• KMS share quota for all KMS Key request for a account
• Ways to avoid Throttling
  • Exponential Backoff
  • Request Quota Increase
  • Cache Key using LocalCryptoMaterialsCache

KMS Types

1. Symmetric KMS (AES 256)

Single key for Encrypt/Decrypt

• KMS Key is not available to user

API:

• Encrypt,Decrypt: for data upto 4kb
• GenerateDataKey: for data >4kb for Envelope Encryption generate Data Encryption Key(DEK)
  • return plaintext DEK with copy of encrypted DEK under CMK
• GenerateDataKeyWithoutPlaintext
  • create encrypted DEK at some point later which need to be decrypted before use.
• GenerateRandom: Random Byte String

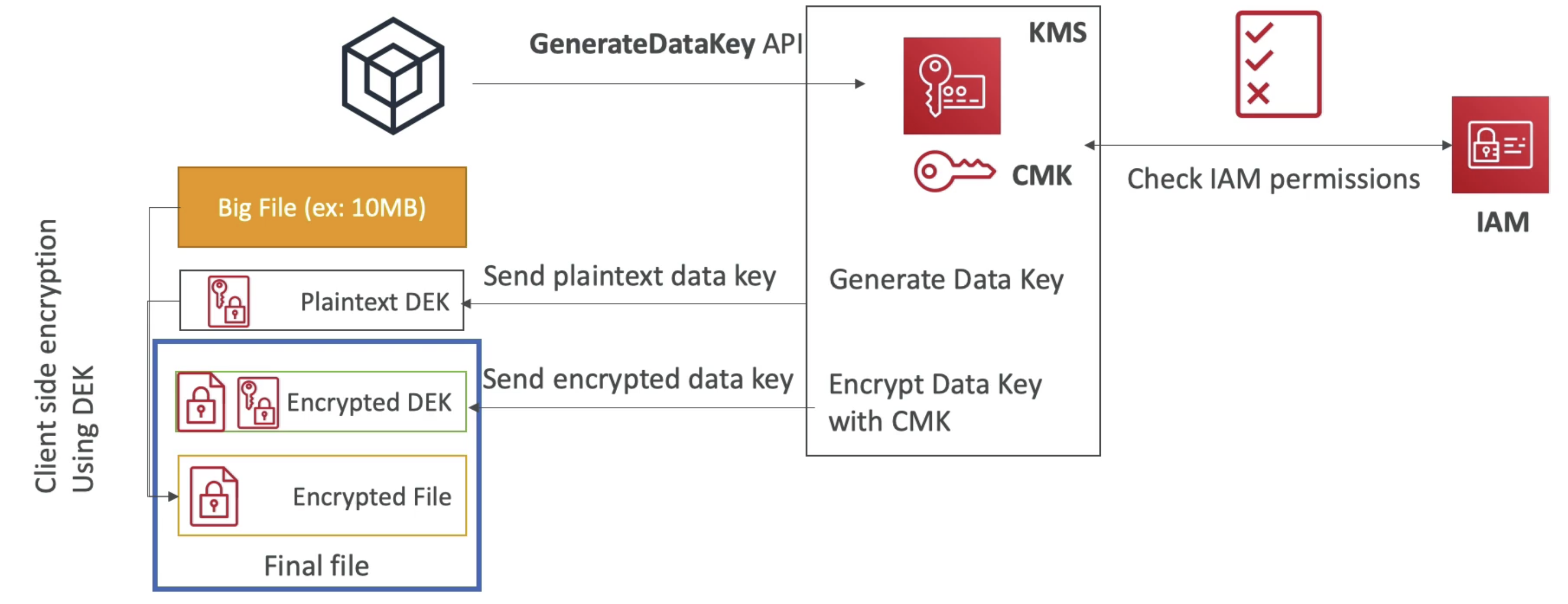

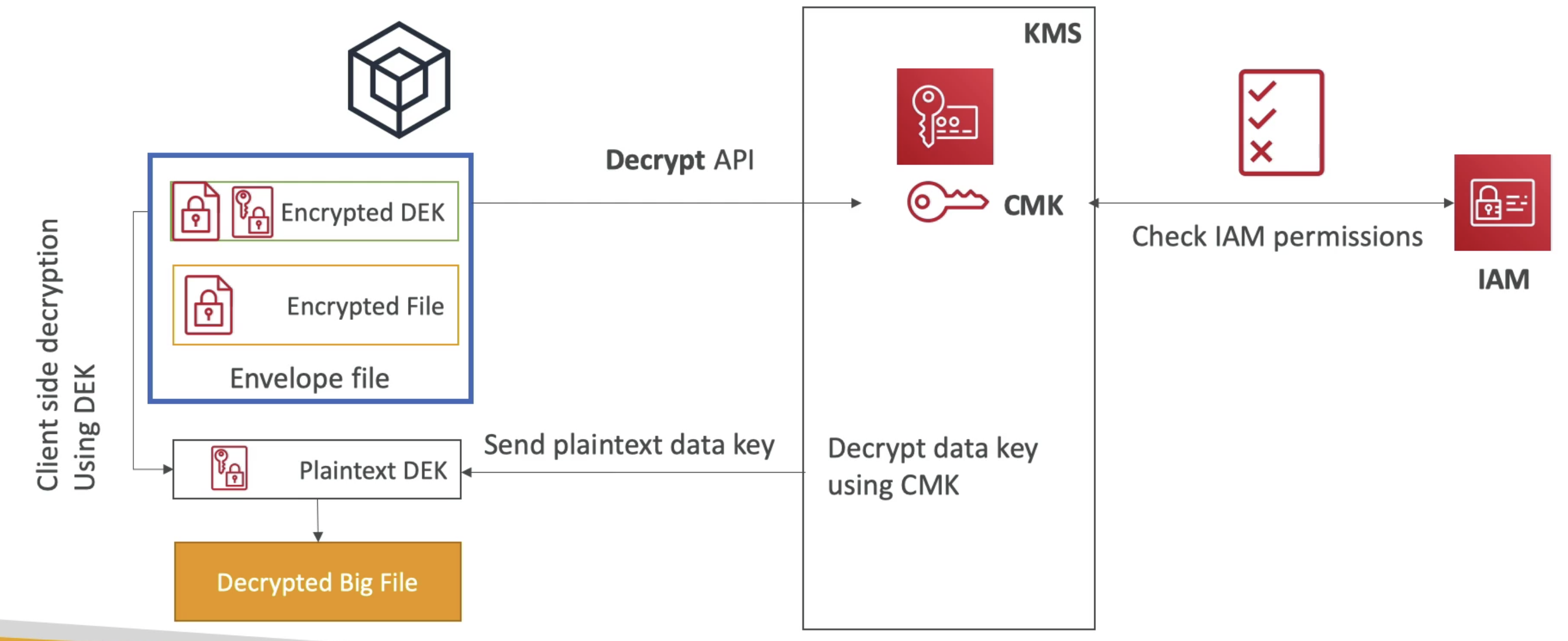

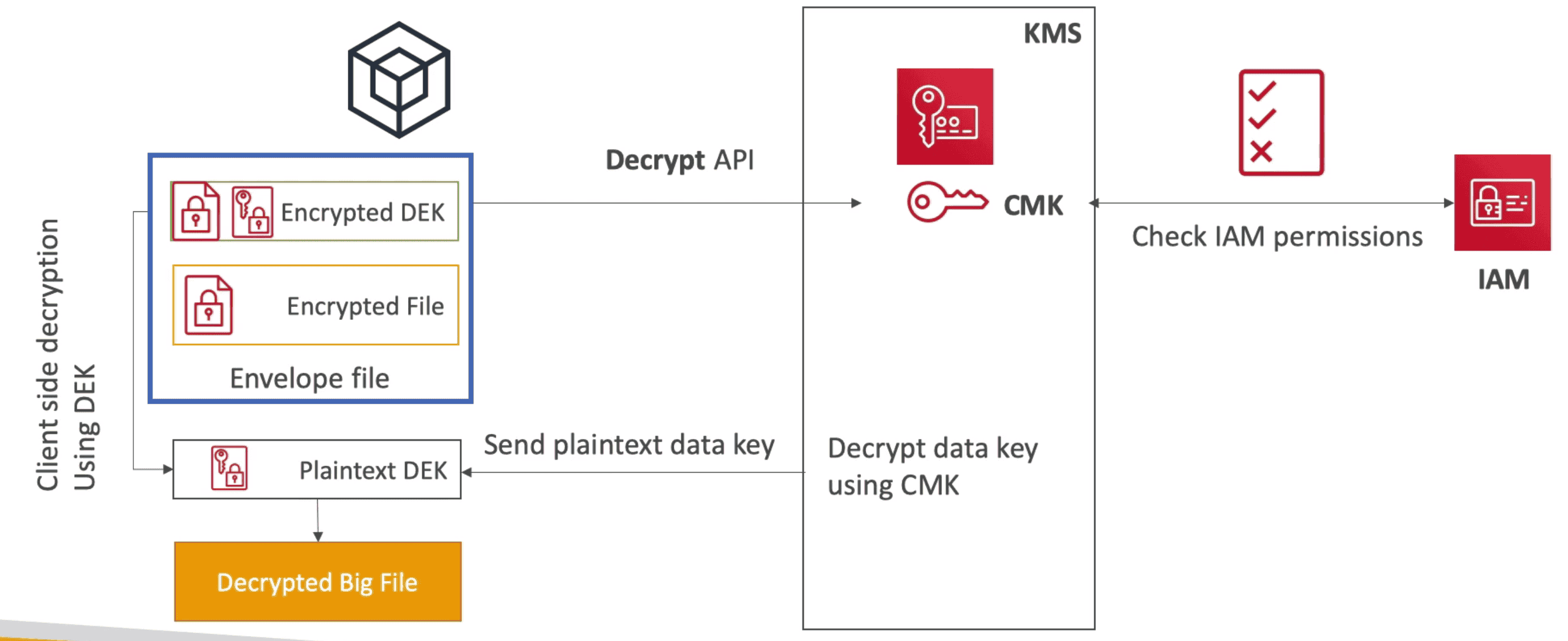

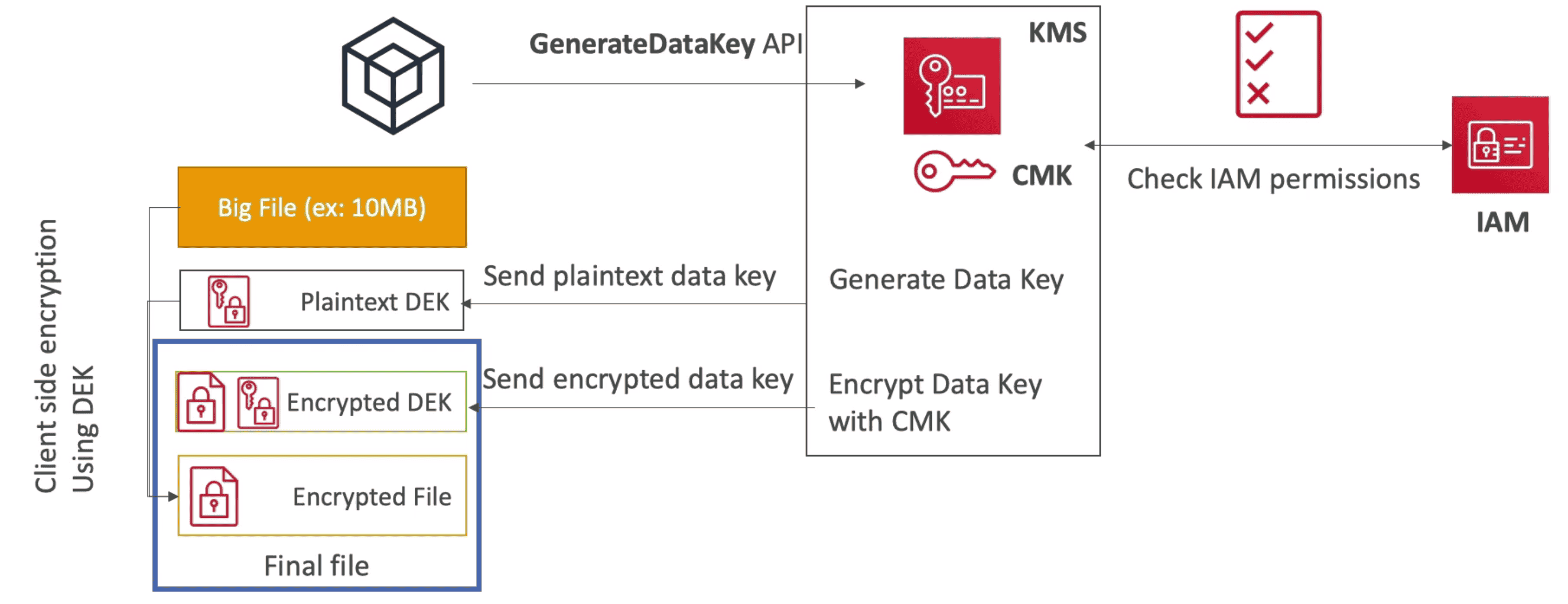

Envelop CSE of bigger file using Generated Data Key Encryption Decryption

2. Asymmetric KMS (RSA, ECC Key Pair)

Public key(Encrypt) , Private Key(Decrypt) Key pair

• Only Public KMS key is available to user

API:

• Sign
• Verify

CMK (CUSTOMER MASTER KEY)

1. AWS Manged CMK(Default)

   Create Managed & Used by AWS on behalf of Customer

   • Used only by AWS services
   • Key Name start with aws/

2. Customer Managed CMK

   Create Managed & used by customer

   • Cost Money($1/Month)
   • Possible to rotate keys

3. AWS Owned CMK

   CMK managed & used by AWS services

   • AWS use to project account but customer cant see them

4. Cloud HSM Key

   Key generated by cloud HSM Hardware

   • Operation performed in Cloud HSM cluster
   • Expensive

Cloud HSM (HARDWARE SECURITY KEY)

AWS Provisioned encryption hardware

• We Manage the Keys, AWS manage Hardware
• Dedicated Hardware with temper resistance
• Connect with CloudHSM Client to manage keys

KMS Policy

Policy to Control access to your KMS CMKs

• Without Policy no one can access keys: Policy allow user to access Keys.
• IAM Policy should allow calling KMS to access Key
• Default Policy: Allow Root user access to KMS
• Custom Policy: Define user & role who can access & manage key

Server Side Encryption (SSE-KMS)

User controlled KMS Key used for SSE

• Set "x-amz-server-side-encryption":"aws:kms" as header in HTTP/S call for upload object
• User Controlled KMS allow Audit trail

• Make use of GenerateDataKey & Decrypt API
• KMS Key logs show in CLoudtrail logs & Quota get decrease KMS Quota Limit

---

Security Enhancement Agents

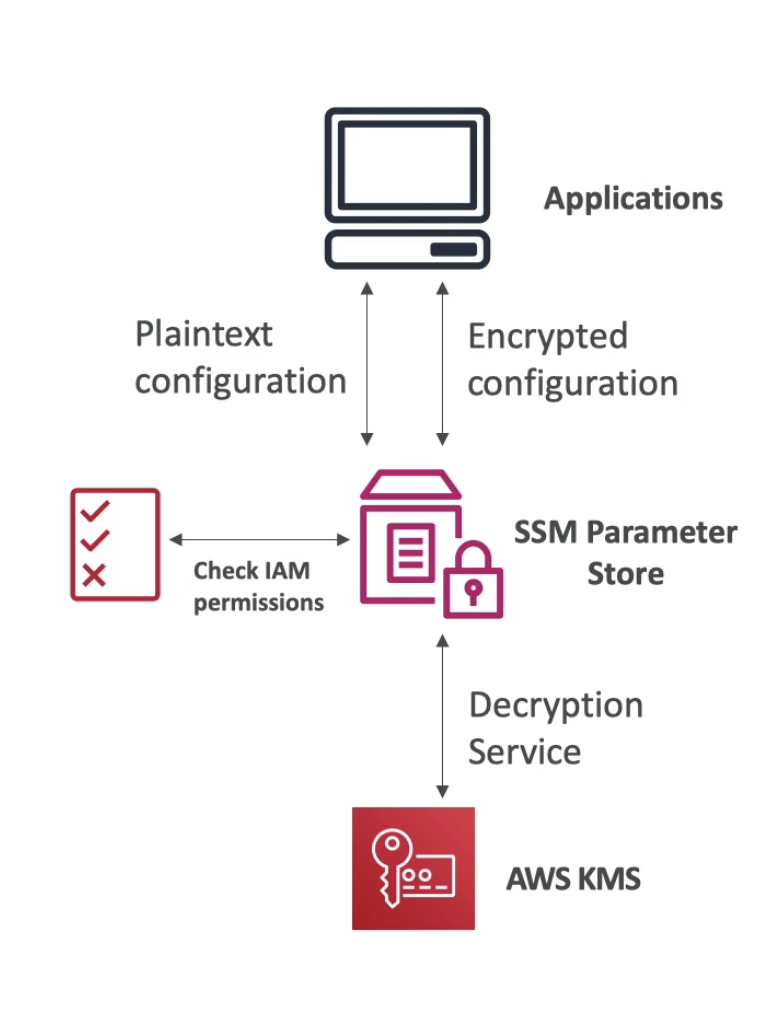

SSM Parameter Store

store secrets & Config with help of Systems Manager(SSM)

• Allow versioning of secret & config
• serverless, scalable, easy to use sdk
• Seamless Encryption using KMS
• Integration with CLoudFormation & CloudWatch

Feature	Standard	Advanced
Parameter/AWS Account	10k	100k
Max Parameter Size	4kB	8kB
Parameter Policy	NO	YES
Storage Cost	Free	$.05 /parameter/month
Standard Throughput	Free	$.05/10k API
Higher Throughput	$.05/10k API	$.05/10k API

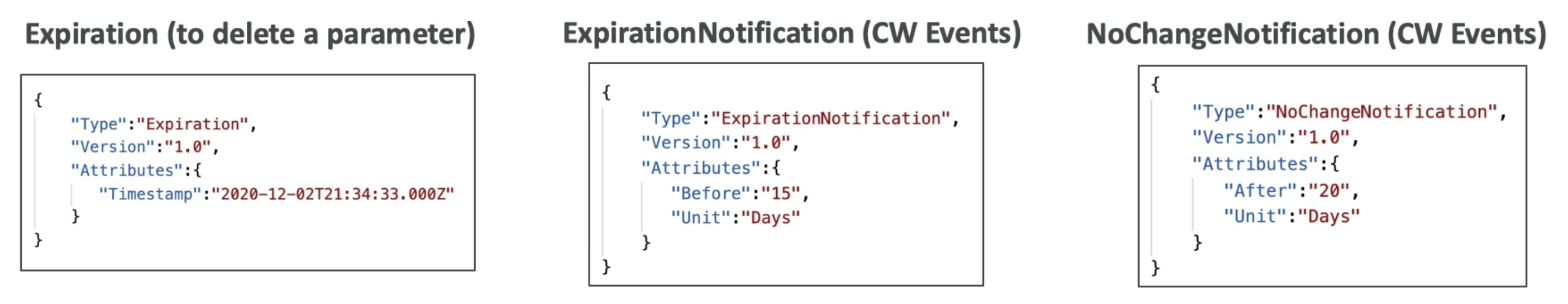

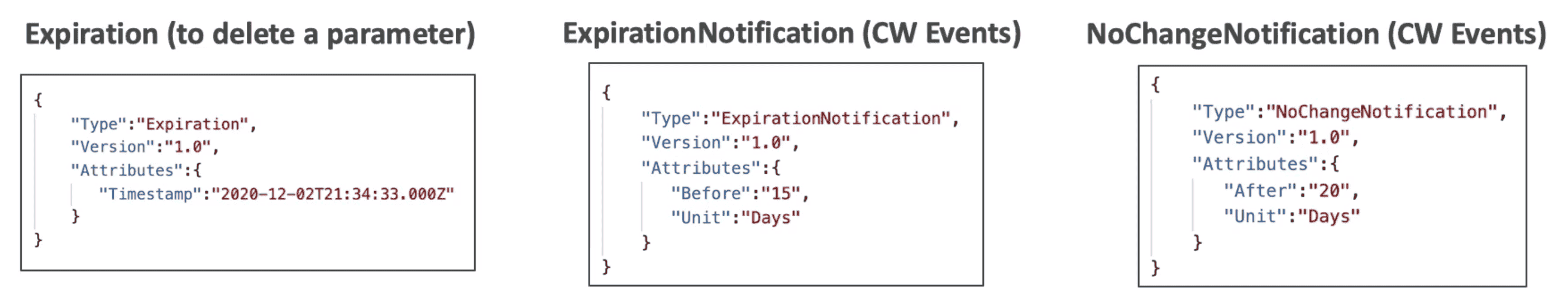

Parameter Policy

Allow to assign TTL to force update Parameter Store

• Only supported by Advanced ssm parameter store

AWS Secret Manager

paid service to Store Secret after SSM Parameter store

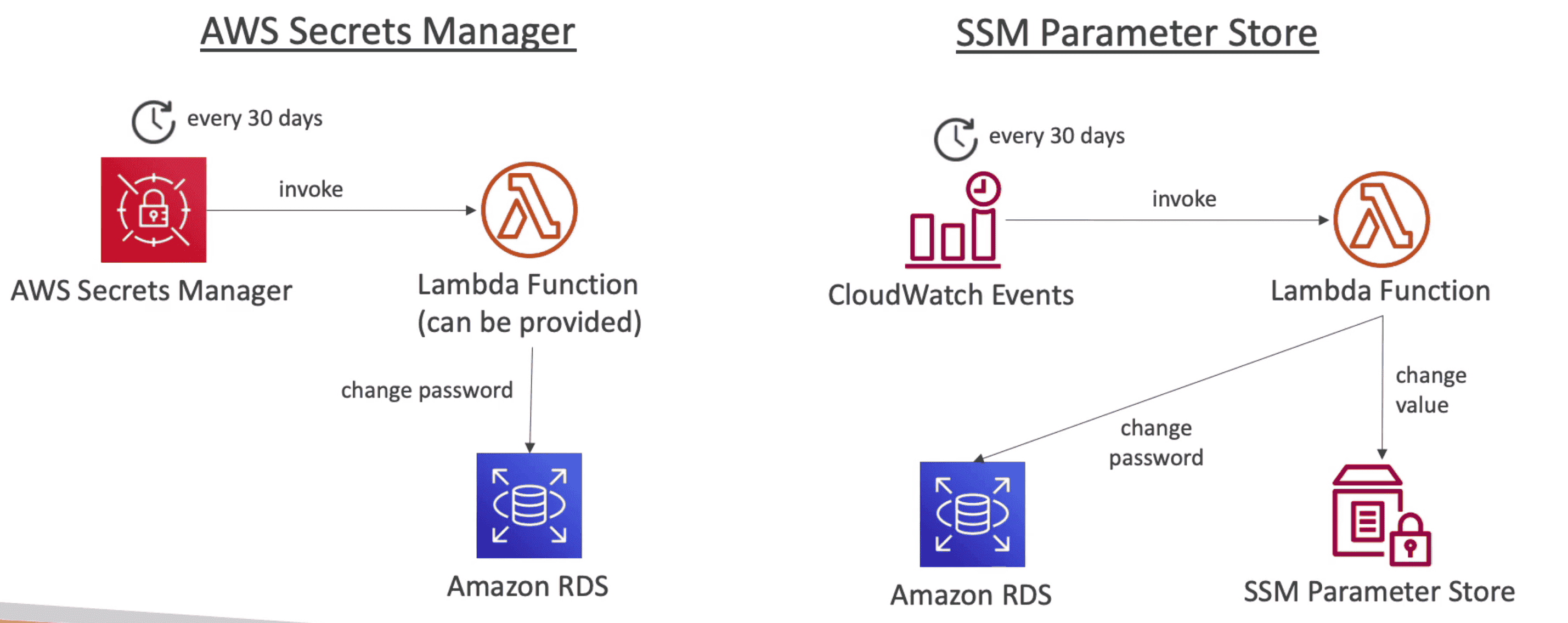

• Option to force Rotation of secret every X day
• Automate Secret Generation using AWS Lamda
• Integrated with RDS DynamoDB, RedShift,DB to create password for DB
• Encrypted with KMS
• Price: $.4/secret/Month
• Throughput: $.05/10k API

Feature	SSM Parameter Store	Secret Manger
Cost	More Expensive	Less Expensive
Rotation	Automatic using Lambda	No Auto Secret Rotation
Usage	Integrated with DB
Encryption	KMS Mandatory	Optional
Cloudformation Integration	Supported	Supported

ACM (AWS CERTIFICATE MANAGER)

Allow to provision & maintain SSL/TLS Certificate

• Provide HTTPS end points
• Support public & private TLS Certificate
• Free of charge for TLS
• Support Automatic renew of TLS
• Load onto
  • Elastic Load Balancer
  • API gateway
  • CloudFront to offer HTTPS to client traffic

SNI (Server Name Indication)

List of certificate to supported by list of host name to create SSL connection to ELB

• Load multiple Certificate to one web server
• Works with ALB, NLB to support multiple Certificate for Multiple Listeners
• Supports Cloudfront
• Does not support CLB

AWS Artifact

Give Compliance report for internal Audit or Compliance

• AWS Artifact Reports: compliance reports of AWS audited by from third-party auditors.

• AWS Artifact Agreements: Service provide access to agreement HIPAA, BAA or for organization

ML Analysis Tools

AWS Inspector

Automatic Security assessment to find Security Vulnerability in EC2 instance

• Agent install & run Only on EC2 Instance
• Can be run once, weekly
• Agent can be installed in all EC2 instance for account
• Create list of Assessment Findings
  • Analyse OS against Security vulnerability
  • Analyse against unintended network accessibility
  • Security Best practices

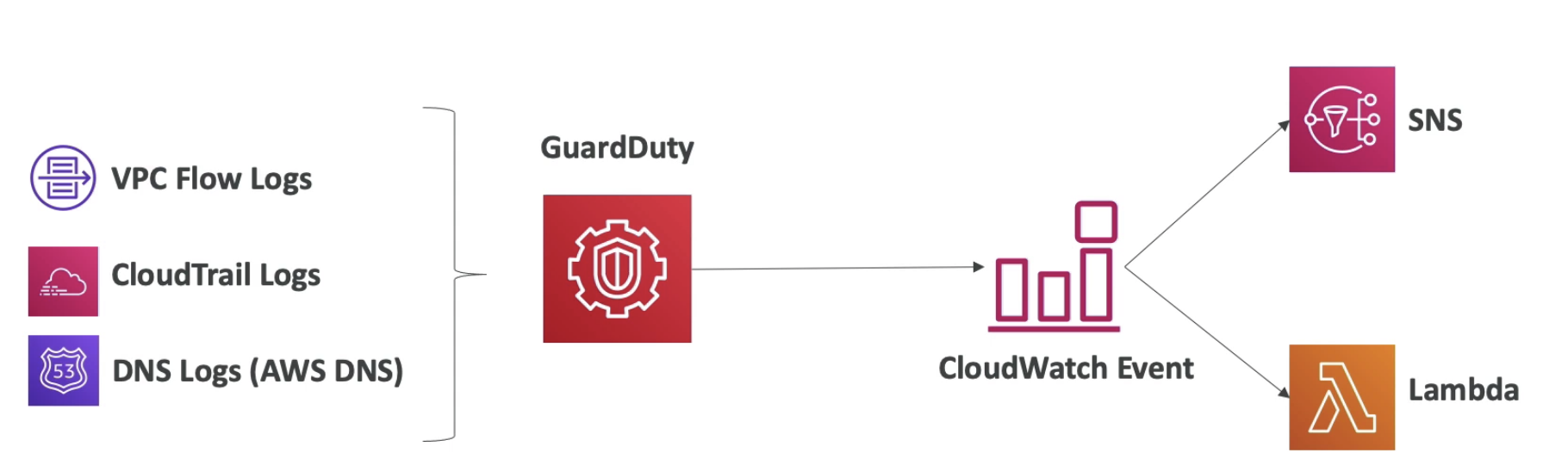

Guard Duty

Intelligent Threat Discovery by Analysis Logs

• Detect anomaly and unauthorize API calls from various sources using ML
• No installation required with 30 days trial
• Can trigger Lamda function or SNS topic with help of Cloud Watch
• Protect against Crypto Currency Attack

Continuously Analysis Logs from:

• Cloud trail logs
• VPC Flow Logs
• DNS Logs

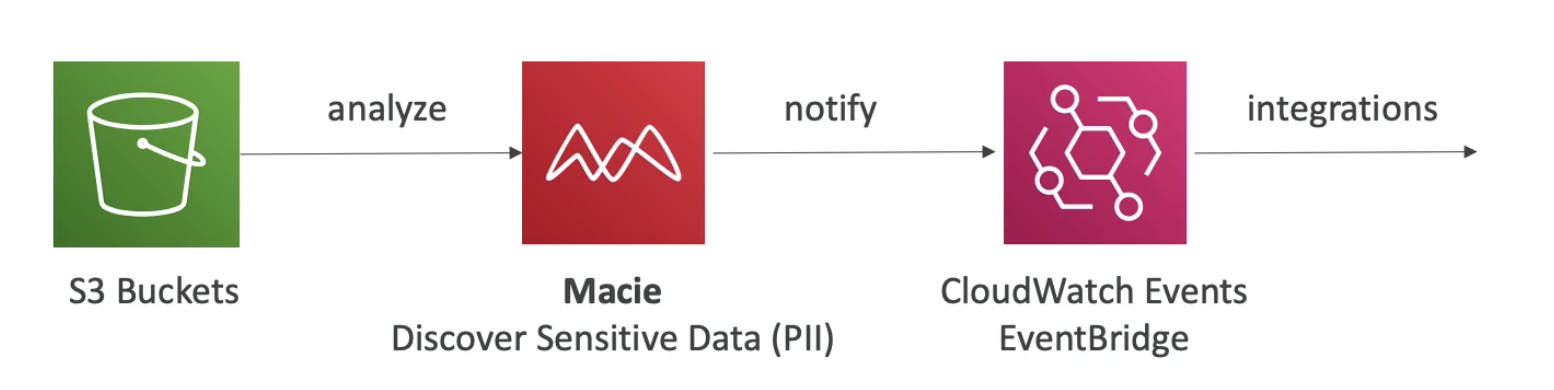

Macie

Fully managed data security & data privacy service

• Discover & protect sensitive data in AWS S3 using ML & pattern matching.
• Use Cloud watch to inform PII(Personal Identifiable Information)
• Create Alert around sensitive Data stored in DB/Storage to trigger SNS or Lambda

Amazon Detective

Analyze Investigate the root cause of security issue or suspicious Activity

• Help speed up finding security hole with help of ML
• Automatically collect logs form VPC flow, Cloud Trail, Guard Duty & create unified view

AWS Compute Optimizer

Provides a set of APIs and a console experience to help you reduce costs and increase workload performance by recommending the optimal AWS resources for your AWS workloads.

• Reduce costs by using ML to analyze your resources' configurations and their utilization.
• Optimize: EC2, AutoScaling Group, EBS, Lambda

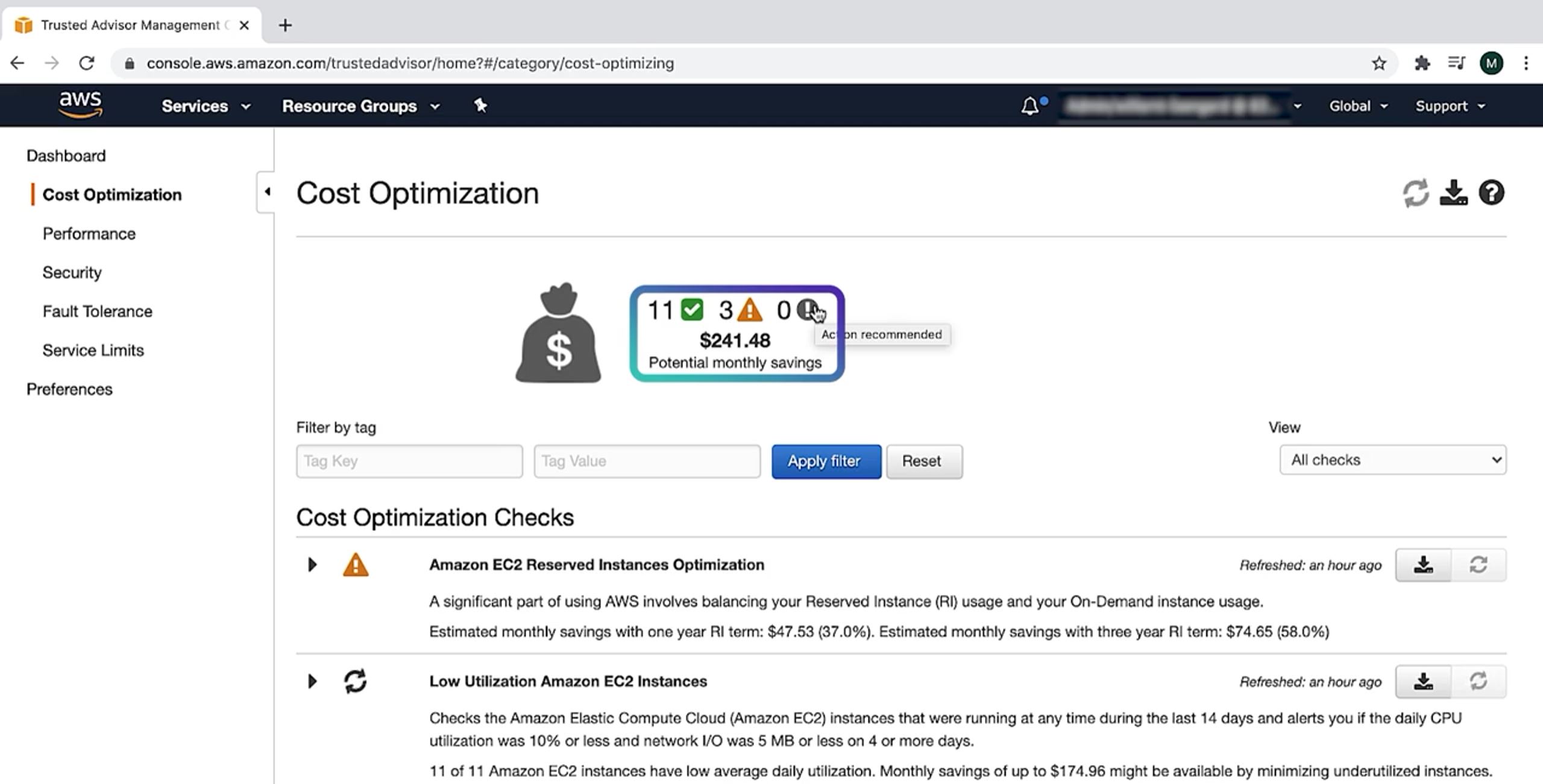

AWS Trusted Advisor

Web service that inspects AWS environment and provides real-time recommendations in accordance with AWS best practices

Evaluate Resources against: *(Important for Exam)

• Cost Optimization
  • identify unattached or underutilized EBS volumes
  • low used EC2 Instance & Idle Load Balancer
  • Reserved instance & saving plan optimization
• Performance
  • Over utilize EC2 Instance
  • EC2 to EBS Optimization
  • Cloudfront, CDN Optimization
• Security: 7 Core Check *(Important for Exam )
  • S3 Bucket Permission: Bucket is not public
  • Security Group: specific port not unrestricted eg SSH
  • MFA on root account
  • IAM Use: at least 1 IAM user
  • MFA on root account: Multi factor authentication on root account
  • EBS public snapshot:
  • RDS Public snapshot:
  • Service Limit in AWS:
• Fault Tolerance
  • EBS Snapshot age
  • Multi AVZ Configuration: RDS, ELB
• Service Limit
  • Reaching service Quota

Full Check

• Available only with Business & Enterprise Plans
• Cloudwatch alarm when reach service limit
• Programmatically access AWS Support API

Alert Levels

• ✅: no problems.
• ⚠️: recommended investigations.
• 🔴: recommended actions.

---

Infrastructure Security

DDOS (Distributed Denial of Service)

flood a website or application with excessive network traffic until the targeted website or application becomes overloaded and is no longer able to respond.

1. AWS Shield Standard

• Free: Protects all AWS customers at no cost
• Protect on Layer 3/4
• Protect from most common, frequently occurring types of DDoS attacks.
• Real time automatic mitigation

2. AWS Shield Advanced

Detect and mitigate sophisticated DDoS attacks

• Paid Service: $3000/month/organization
• 24/7 Response Team
• Protection from higher resource usage during DDoS attack

3. Web Application Firewall (WAF)

Protect from Web exploits SQL Injection & Cross SiteScripting XSS

• Operate on Layer 7 HTTP Layer of OCI Model
• Work on: Application Load balancer, API gateway, Cloud Front
• Define Web ACL (Access Control List)
  • geo-match: Blacklist Country
  • IP Address, Header, Body
  • SQL Injection & Cross Site XSS
  • Rate based rule(Max request per user)

NETWORK ACCESS CONTROL LIST (Network ACL)

• Stateless
• Subnet Level Security on VPCS
• Block request entering or exiting subnet
• By default allows all traffic in & out
• Custom ACL deny all traffic until specified which traffic to allow

SECURITY GROUP

• Stateful
• EC2 Instance level Security operate at Network Level
• Outbound traffic allowed by default inbound traffic allowed after check.
• All EC2 Instance are assign to security group
• By Default Security Group block all requests
• Security rules must modify to allow specific type of traffic eg HTTPS

AWS Firewall Manager

a security management service that allows you to centrally configure and manage firewall rules across your accounts and applications in AWS Organizations.

• integrated with AWS Organizations to enable
  • AWS WAF rules,
  • AWS Shield Advanced protection,
  • security groups,
  • AWS Network Firewall rules,
  • Amazon Route 53 Resolver DNS Firewall rules.

Penetration Testing

Allowed to test 8 services without prior approval

• EC2
• RDS, Aurora
• Cloudfront
• Lamda & Edge Function, API Gateway
• Lightsail
• Elastic Bean stalk

---
